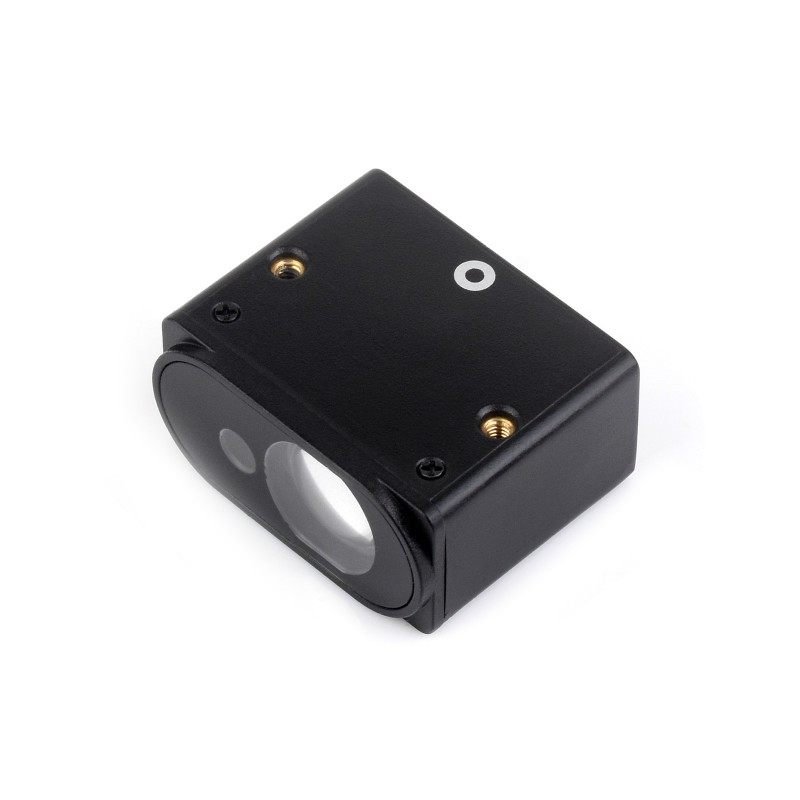

TOF Laser Range Sensor (D) - 50m Measuring Range

The TOF Laser Range Sensor (D) utilizes Time of Flight (TOF) technology to achieve precise and stable distance measurements with an extended range of 0.05m to 50m and a high accuracy of ±3cm. It features an embedded MCU and advanced ranging algorithm, making it highly suitable for both indoor and outdoor environments. With UART and I2C communication support, this sensor is versatile for a wide range of applications. Its ambient light tolerance of up to 100K LUX and ultra-narrow FOV ensure high performance even in challenging lighting conditions.

Key Features:

• Extended Measuring Range: Capable of measuring distances between 0.05m and 50m.

• High Accuracy: Offers an accuracy of ±3cm.

• Light Tolerance: Operates efficiently in ambient light levels up to 100K LUX.

• Communication Options:

  • UART (3.3V TTL signal level): Default, supports active query output.

  • I2C: Cascading support for up to 8 modules.

  • I/O Mode: Provides complementary level output (distance parameter unavailable in this mode).

• Compact & Lightweight: Dimensions 22.7mm × 28mm × 13.6mm, Weight 7.7g.

• Power Supply: Operates at 4.3V to 5.2V with a low power consumption of 250mW.

• Durable Build: Works reliably in temperatures between -10°C and 60°C.

• Applications: Ideal for long-range distance measurement, robot obstacle avoidance, drone altitude sensing, route planning, and hydraulic stacking detection.

TOF Laser Range Sensor (C) - 25m Measuring Range

The TOF Laser Range Sensor (C) utilizes Time of Flight (TOF) technology to achieve precise and stable distance measurements with a range of 0.05m to 25m and a high accuracy of ±3cm. It features an embedded MCU and advanced ranging algorithm, making it suitable for indoor and outdoor applications. With UART and I2C communication support, this sensor is versatile for a wide range of projects. Its ambient light tolerance of up to 100K LUX and ultra-narrow FOV make it ideal for environments with high light interference.

Key Features:

• Long Measuring Range: Capable of measuring distances between 0.05m and 25m.

• High Accuracy: Offers an accuracy of ±3cm.

• Light Tolerance: Tolerates ambient light levels up to 100K LUX.

• Communication Options:

  • UART (3.3V TTL signal level): Default, supports active query output.

  • I2C: Cascading support for up to 8 modules.

  • I/O Mode: Provides complementary level output (distance parameter unavailable in this mode).

• Compact & Lightweight: Dimensions 22.7mm × 28mm × 13.6mm, Weight 7.7g.

• Power Supply: Operates at 4.3V to 5.2V with a low power consumption of 250mW.

• Durable Build: Works reliably in temperatures between -10°C and 60°C.

• Applications: Ideal for distance measurement, robot obstacle avoidance, drone altitude sensing, route planning, and hydraulic stacking detection.

Hardware connection

connecting with Raspberry Pi (via I2C)

connecting with Raspberry Pi (via UART)
