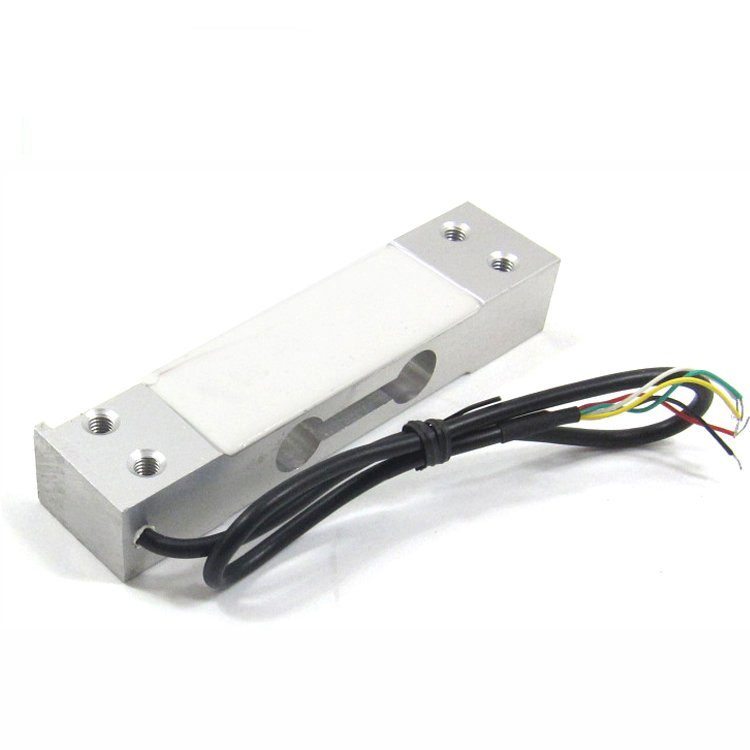

Features:

1, aluminum alloy, hermetically sealed with glue to IP65,

2, Surface anodized and anti-corrosion, integral structure and easy installation.

3, Application: electronic top scale, floor scale and other weighing equipment.

It uses 4-core shielded cable (φ4×420mm). The length of the cable is adjustable according to customer requirement.

Parameters:

Application Price computing scale, table top scale

Model SC601

Capacity 3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 30kg, 40kg, 50kg, 60kg, 100kg, 120Kg

rated output 2.0±0.15mV/V

Accuracy class 0.03%F.S / 0.02% F.S

maximum number of verification intervals 2000Nmax

Minimum loadcell cerification intervals Emax/5000 Vmin

Combined error ≤±0.03% RO

Creep 0.003%RO/30min

Temp. effect on sensitivity 0.0016 %RO/℃

Temp.effect on zero 0.003%RO/℃

Zero balance ±1.0 %RO

Input resistance 402±6 ohm

Output resistance 350±3 ohm

insulation resistance 5000 MΩ(50V)

Recommended excitation voltage 10-15V

Compensated temperature range -10-+40℃

operating temperature range -35-+80 ℃

safe overload 150 %RO

Ultimate overload 200%RO

loadcell material Auuminum

platform size 250x350 mm

Connecting cable Φ4.2x350 mm

Method of connecting wire Red- input+, black- Input-. Green- Output+, White- output -
