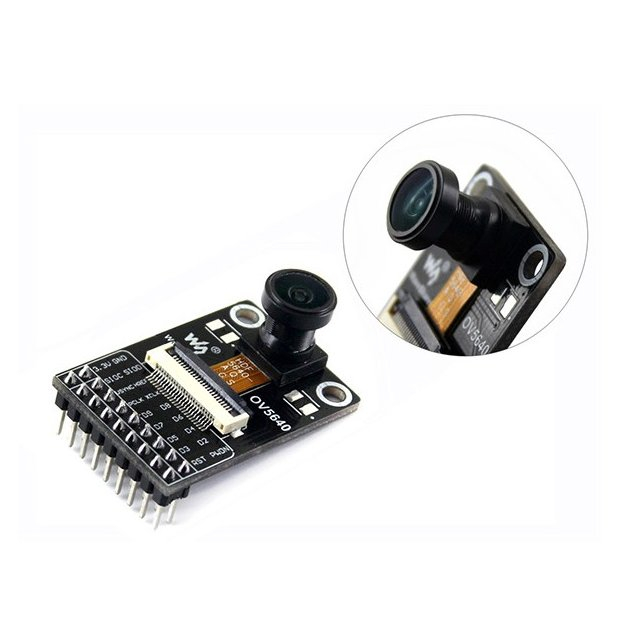

Features

• Pixels: 5 megapixel

• Resolution: 2592x1944

• Sensor: OV5640

  • 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise

  • Automatic image control functions: AEC, AWB, ABF, ABLC, etc.

  • Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.

  • Supports image scaling, panning, windowing, etc.

• Lens:

  • CCD size: 1/4inch

  • Aperture (F): 2.5

  • Focal Length: 2.0mm

  • Diagonal: 170 degree (fisheye)

• Output Formats:

  • YUV(422/420)/YCbCr422

  • RGB565/555/444

  • CCIR656

  • RAW RGB

  • Compressed Data

• Operating Voltage: 3.3V

• Control Interface: SCCB (I2C compatible)

• Data Interface: DVP 8-bit

• Dimension: 35.70mm × 23.90mm

Dimensions
