Features

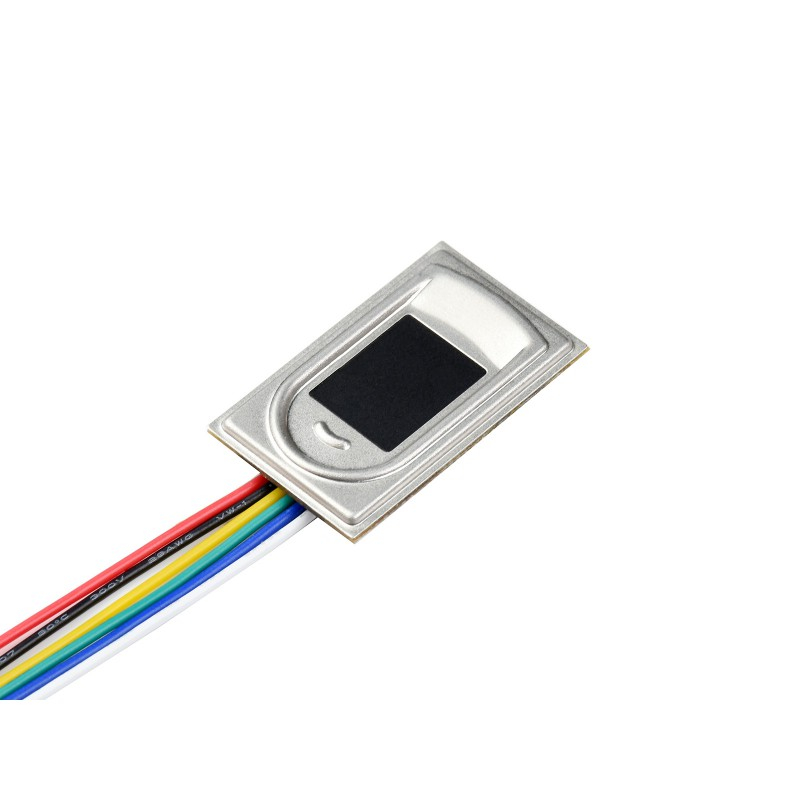

Based on a high performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (E) features functionalities like fingerprint enrolling, image acquisition, feature finding, fingerprint matching, and so on. Without any knowledge about the complicate fingerprinting algorithm, all you need to do is just sending some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.

Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure

Commercial fingerprinting algorithm, supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, and fingerprint feature uploading, stable performance, fast identification

Capacitive sensitive detection, just touch the collecting window lightly for fast verification

Highly integrated hardware, processor and sensor in one small chip, suitable for small size applications

Embedded human sensor, the processor will enter sleep automatically, and wake up when touching, lower power consumption

Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi

Specifications

parameter value

Sensor capacitive touch sensor

Resolution 508 DPI

Image pixels 160×160

Image greyscale 8

Sensor dimension 11.2 × 12.2 mm

Fingerprint capacity 3000

Matching time <200ms (1:N, and N≤100)

False acceptance rate < 0.001%

False rejection rate < 0.1%

Operating voltage 3.3V

Operating current < 50mA

Sleep current < 16uA

ESD contact discharge 8KV / aerial discharge 15KV

Communication port UART

Baudrate 19200 bps

Operating environment Temperature: -20°C70°C; Humidity: 40%RH85%RH (no condensation)

Storage environment Temperature: -40°C~85°C; Humidity: <85%RH (no condensation)
