Overview

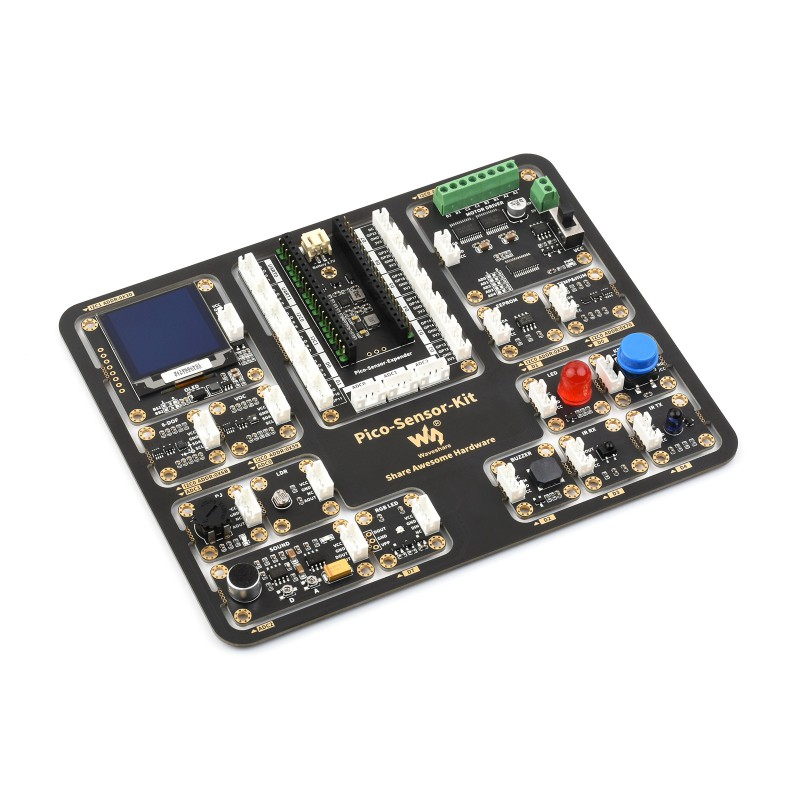

Pico-Sensor-Kit is a PICO entry-level sensor kit, including common sensors such as LED, buttons, and buzzers, which is easy for beginners to get started.
All-in-one design, all the modules are connected with PCB castellated holes, which is not needed to be soldered or wired anymore. Hence, you do not need to worry about the wiring. and it can provide you with an excellent programming experience.

Of course, you can separate these modules, and then connect them with the wires we provided, and these modules are easy to be integrated into your projects.

• PS: Please pay attention to the sharp cuts and fragments when disassembling the modules.

Pico-sensor-kit includes 15 modules in total. For more details, please refer to the following table.

Module Module Connection Port Description

Button Module D0 Detect whether the button is pressed, for human-computer interaction

LED Module D1 Emit light by inputting electrical signal

Buzzer Module D2 Sound by the frequency of the input electrical signal

IR Receiver Module D3 Accept infrared remote control signal and output electrical signal

IR Transmitter Module D4 Emit infrared light at the frequency of the input electrical signal

RGB LED Module D7 Full-color lights controlled by a single bus

6-axis Sensor Module I2C0 (ADDR:0 X 6B) 6-axis attitude sensor

VOC Sensor Module I2C0 (ADDR:0 X 59) VOC (Volatile Organic Compound) sensor

EEPROM Module I2C0 (ADDR:0 X 50) Electrically erasable programmable read-only memory, which can be used to store offline data

Temperature/Humidity Sensor Module I2C0 (ADDR:0 X 70) Low power consumption temperature and humidity sensor

Motor Driver Module I2C0 (ADDR:0 X 40) Can be used to drive four 5V motors

OLED Module I2C1 (ADDR:0 X 3D) 1.5-inch OLED module, 128 × 128 resolution, 16 grayscale display

Photoresistor Module ADC0 For detecting the brightness

Potentiometer Module ADC1 Can be used to simulate voltage changes

Voice Sensor Module ADC2 Can be used to detect ambient sound

PS: Onboard 3.3V for DC-DC output, the maximum current is 2A if the motor driver board power supply should pay attention to its current.

The motor driver board is recommended to use an external power supply, which can improve system stability.

Interface Description
