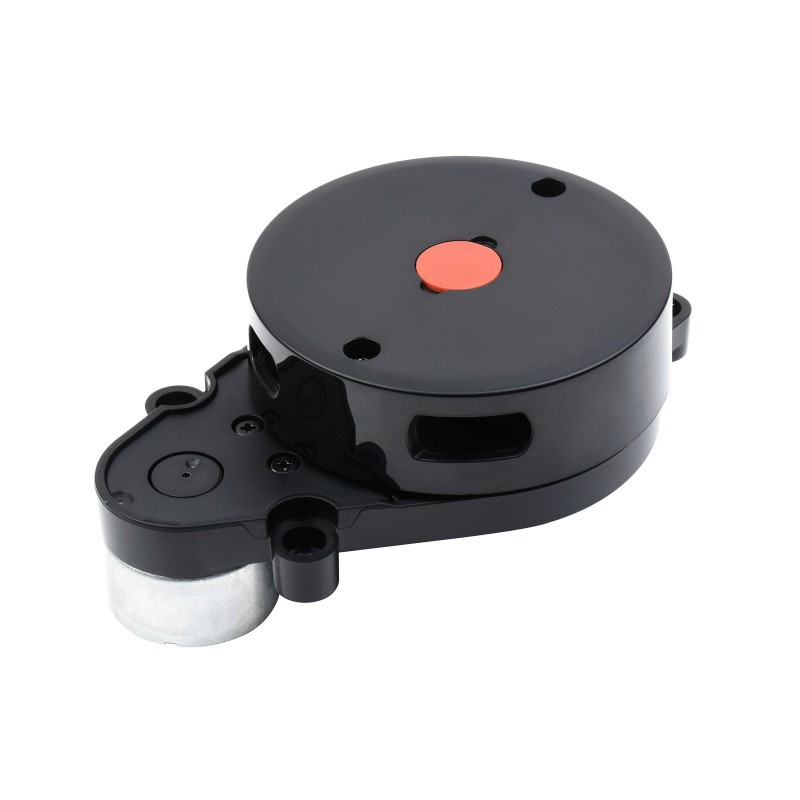

Waveshare D200 Lidar Kit, a high-performance 360° scanning LiDAR system designed for precise distance measurement and environmental mapping. Whether you’re developing a robot vacuum, constructing a service robot, or prototyping an autonomous vehicle, this kit provides real-time data that enables accurate mapping and obstacle detection in complex indoor or outdoor environments.

Key Features

1. 360° Omnidirectional Scanning

   • The D200 Lidar continuously rotates to capture a full 360° sweep of its surroundings. This comprehensive coverage allows for complete environmental awareness, making it ideal for SLAM (Simultaneous Localization and Mapping), obstacle avoidance, and navigation.

2. Extended Range & High Accuracy

   • Capable of measuring distances up to 25 meters (depending on conditions), the sensor achieves typical measurement accuracy within a few centimeters. This precision ensures reliable performance when detecting objects or mapping large spaces.

3. Fast Sampling Rate

   • The LiDAR sensor can sample thousands of data points per second, providing finely detailed distance information for rapid environment modeling. This speed is crucial for responsive robotic movement and real-time decision-making.

4. Stable & Efficient Design

   • Engineered for durability and low power consumption, the D200 Lidar Kit operates with minimal noise and heat generation. Its brushless motor design ensures longevity, making it suitable for continuous or long-term deployments.

5. Easy Integration

   • The kit communicates over a standard interface (USB) and includes the necessary cables and mounting accessories. Compatible with popular development platforms and mapping software, it’s straightforward to integrate into both hobbyist and professional projects.

6. Multiple Use Scenarios

   • From obstacle avoidance in robotic vacuums to environmental scanning in drones, the D200’s high-speed scanning, wide detection range, and robust design accommodate countless applications. Use it for warehouse automation, autonomous vehicles, security patrol robots, and more.

7. Built-In Protective Measures

   • Features such as safe laser emission (Class 1), over-temperature protection, and stable mechanical housing provide a reliable and safe user experience. This ensures that even in demanding conditions, the sensor remains accurate and secure.

How It Works

1. 360° Rotation

   • The LiDAR head rotates continuously, emitting laser pulses and receiving the reflections from surrounding objects.

2. Distance Measurement

   • Each pulse’s return time is measured, calculating the distance to objects. These data points form a 360° snapshot of the environment with high resolution.

3. Data Output

   • Collected data is transferred via the USB or UART interface to a host system (e.g., a PC or microcontroller). Real-time mapping software can then process this data to build an environmental map or detect obstacles.

Typical Use Cases

• Robot Navigation: Enable autonomous robotic vehicles to recognize obstacles and plan optimal routes in real-time.

• SLAM & Mapping: Generate accurate 2D or 3D maps of indoor or outdoor environments for research and commercial projects.

• Security & Surveillance: Monitor areas for intrusions, automatically detect changes, and trigger alerts when unexpected objects appear.

• Drones & UAVs: Improve flight path planning, terrain following, and collision avoidance.

• Smart Warehousing: Streamline inventory movement and reduce collision risks by adding LiDAR-based awareness to AGVs (Automated Guided Vehicles).

Technical Specifications

(Please refer to official Waveshare documentation for exact values.)

• Model: D200 LiDAR

• Measurement Range: Up to 25 meters (condition-dependent)

• Scanning Angle: 360° omnidirectional

• Accuracy: ± a few centimeters (typical)

• Sampling Rate: Thousands of points per second (varies by configuration)

• Interface: USB or UART (check included accessories)

• Operating Voltage: Typically 5V (confirm exact requirements)

• Laser Safety: Class 1 (eye-safe)

• Dimensions & Weight: Compact module design (exact specs in datasheet)

• Mounting: Includes bracket and hardware for secure installation

Why Choose the Waveshare D200 Lidar Kit?

The Waveshare D200 Lidar Kit stands out for its blend of high-precision measurement, comprehensive scanning coverage, and user-friendly design. Its fast data sampling rate and expansive detection range allow you to capture the depth and shape of environments swiftly and accurately—essential for modern robotics, research, and automation projects. Coupled with straightforward integration, robust construction, and a variety of safety features, this LiDAR solution is a reliable choice for engineers, makers, and academics aiming to power the next generation of intelligent systems.
