highly durable, ultra-thin sensor measures subtle changes in resistance whenever it is bent or flexed, making it an ideal choice for detecting movement, angle changes, or force exertion in various applications. From wearable technology to robotics, this versatile sensor allows you to capture motion data with remarkable precision and minimal intrusion.

Key Features

1. Flexible Sensing Element

   • The SpectraFlex™ sensor element is designed to alter its electrical resistance in proportion to the amount of bend it experiences. This translates mechanical movement into a measurable electrical signal, perfect for motion tracking or interactive controls.

2. Compact 55mm Form Factor

   • At just 55mm in length, this sensor is easy to integrate into tight spaces or delicate projects. Its slim profile ensures it remains lightweight and unobtrusive, whether placed in wearable devices or embedded in robotic joints.

3. Male Pin Terminals

   • The built-in male pins allow for quick and secure connections to breadboards, jumper wires, or other circuit components. Spend less time soldering and more time prototyping or refining your designs.

4. High Durability

   • Manufactured with robust materials, the SpectraFlex™ sensor can withstand repeated bending without significant performance degradation. This longevity ensures consistent, accurate readings over the life of your project.

5. Wide Range of Applications

   • Ideal for enhancing interactive systems or sensing movement in robotics, exoskeletons, gaming controllers, musical instruments, animatronics, or wearable devices. Its ability to capture real-time bend and twist data makes it adaptable to both educational experiments and professional design environments.

6. Easy-to-Use Interface

   • Connect the flex sensor to an analog input pin or simple resistor network to measure changes in resistance directly. Combine with microcontrollers like Arduino or Raspberry Pi for intuitive prototyping and custom calibrations.

7. Minimal Power Consumption

   • Because the sensor acts like a variable resistor, it draws very little current from your power source. This low-power characteristic is especially beneficial in battery-powered or portable applications.

How It Works

1. Mechanical to Electrical: As the SpectraFlex™ sensor is bent, the internal conductive material experiences a change in length and thickness, altering its resistance.

2. Measurement & Interpretation: When placed in a simple resistor divider circuit or read via an analog pin, this changing resistance can be measured as a varying voltage level.

3. Data Processing: Your microcontroller or data acquisition system interprets these voltage changes, providing real-time feedback on the sensor’s bend angle or degree of flex.

Typical Use Cases

• Wearable Tech: Track body movements, finger bending, or posture correction in smart wearables or medical rehabilitation devices.

• Robotics & Exoskeletons: Monitor joint angles to achieve smooth, responsive motion control.

• Gaming & VR Controllers: Detect finger pressure or hand grips for enhanced realism in virtual reality or gaming environments.

• Interactive Installations: Design responsive art pieces or user interfaces that react to physical manipulation.

• Musical Instruments: Integrate into electronic instruments or controllers for expressive performance based on bending gestures.

Technical Specifications

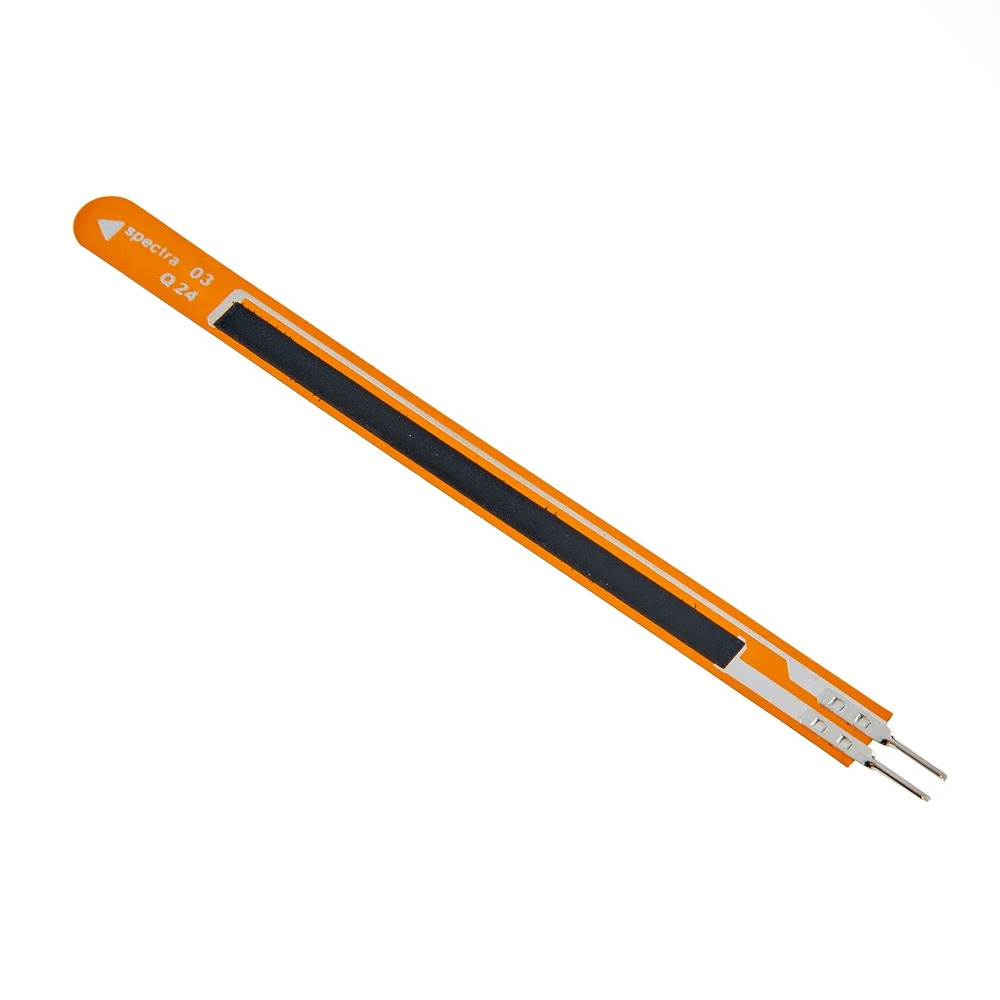

• Product: SpectraFlex™ - Flex Sensor (55mm, Male Pins)

• Length: 55 mm (approx.)

• Connector Type: Male pin terminals

• Resistance Range: Varies with flex angle (typical flat resistance ~ 10kΩ, bending increases resistance)

• Operating Voltage: Dependent on circuit design (commonly 3.3V or 5V for microcontroller usage)

• Durability: Engineered to endure multiple bend cycles without significant performance loss

• Operating Environment: Indoor or controlled environments (avoid excessive moisture or temperature extremes)

Why Choose the SpectraFlex™ - Flex Sensor (55mm, Male Pins)?

By converting the simple act of bending into a precise electrical signal, the SpectraFlex™ - Flex Sensor enables a whole new realm of motion-based sensing possibilities. Its compact design, easy integration, and high durability make it a top choice for educators, engineers, and hobbyists alike. Whether you’re developing advanced wearables, sophisticated robotics, or artistic installations, this sensor delivers reliable, real-time feedback that empowers you to build innovative and interactive experiences.
