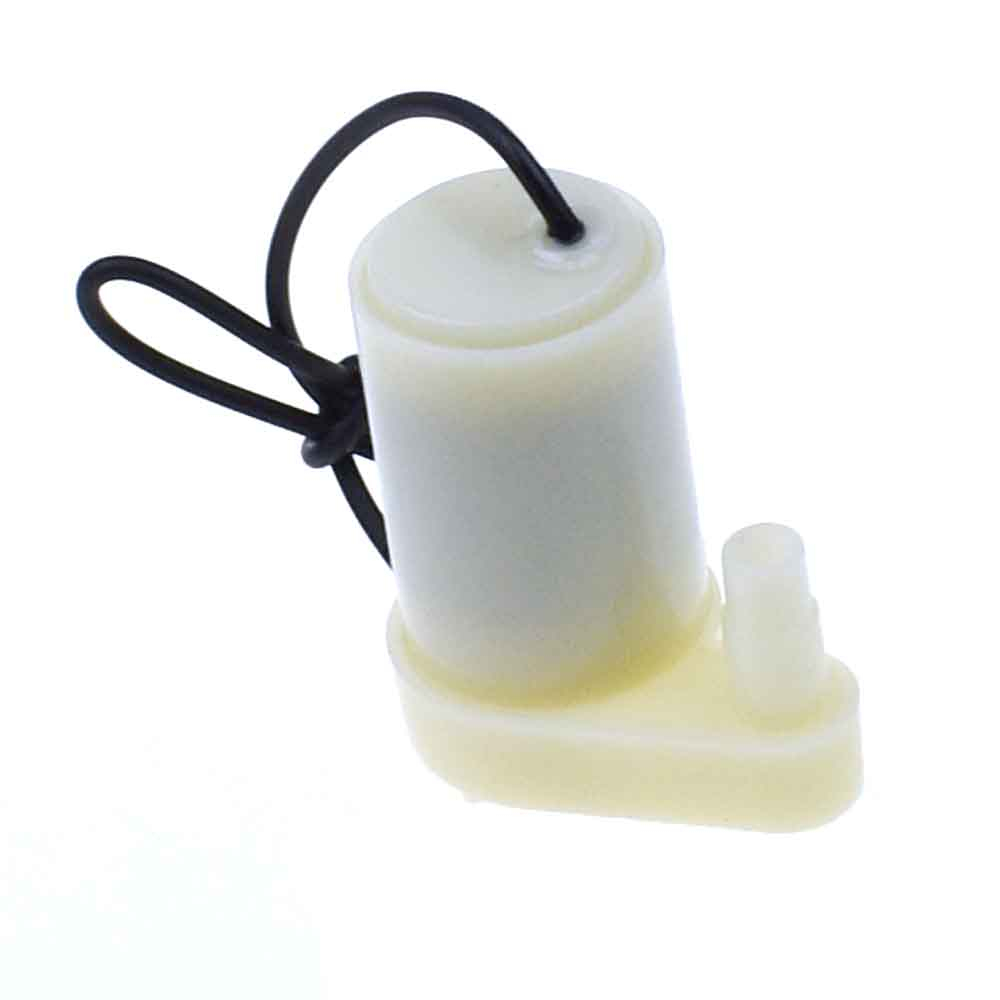

The Mini Submersible Pump is a compact, efficient device designed for a variety of fluid transfer applications. This pump is particularly suitable for tasks such as emptying septic tanks, removing excess water from construction sites, or pumping slurries. Here's a summary of its features and specifications:

Features:

• Brand New & High Quality: The pump is newly manufactured with high standards.

• Design: Available in both horizontal and vertical types, made from durable engineering plastic.

• Drive Mode: Utilizes a DC brushless motor with magnetic drive, ensuring a long operational life of up to 500 hours of continuous use.

• Power Supply: Operates on a low voltage of 2.5-6V, specifically 3-5V DC. It cannot be used directly with a standard AC 220V power supply.

• Nonself-Priming: Requires water to flow into the pump for operation. It must be installed with the water level higher than the pump.

• Maintenance: Regular cleaning is required to prevent blockages in the rotor and to maintain optimal performance.

Specifications:

• Flow Rate: 100 liters per hour (L/Hr).

• Maximum Lift: Ranges between 400 mm to 1100 mm.

• Dimensions:

  • Length: Approx. 45 mm

  • Height: Approx. 33 mm

  • Diameter: Approx. 24 mm

• Effluent Outer Diameter: 7.5 mm

• Water Outlet Inner Diameter: 4.7 mm

• Shipping Weight: 0.03 kg

• Shipping Dimensions: 8 × 5 × 3 cm
