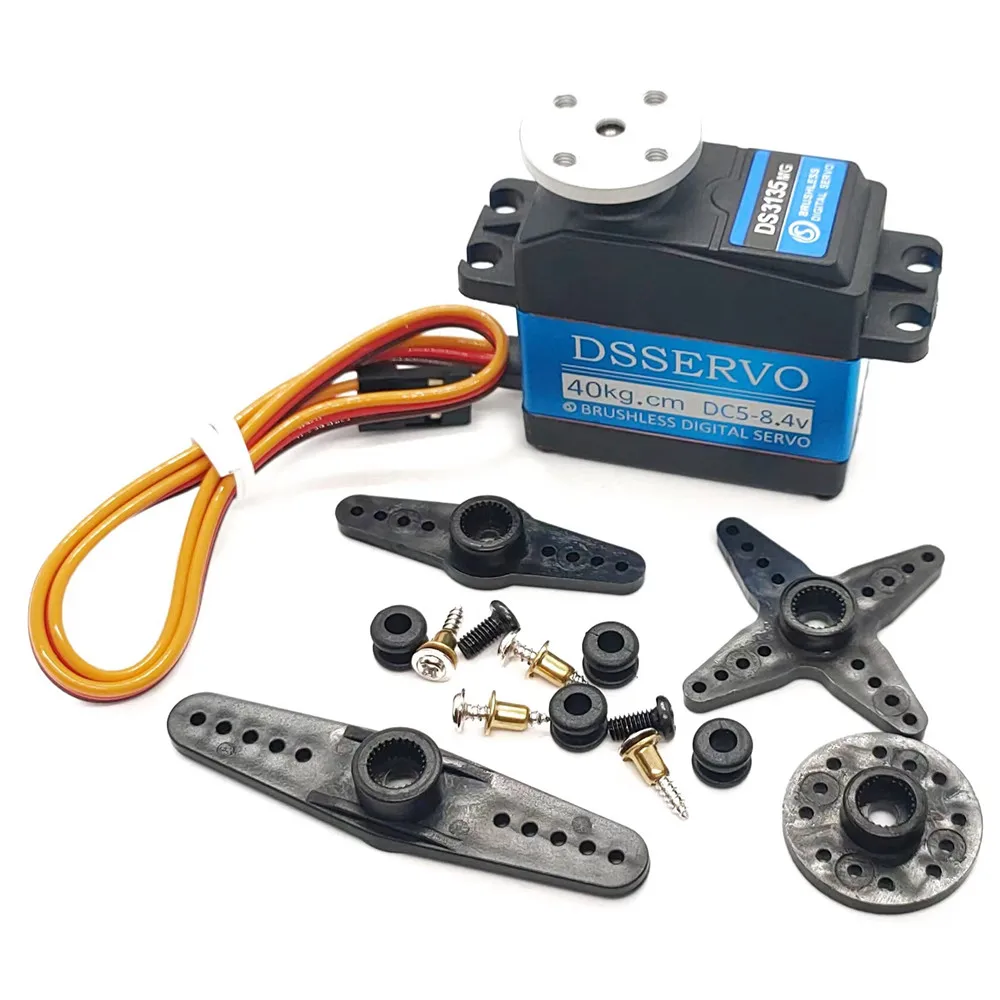

The digital servo DS3135 40kg digital servo features high torque, metal gear, fast heat dissipation, sensitivity, and responsiveness. With high quality and performance, it is tailored for RC hobbyists to provide different experiences and delight.

Servo Motors are great for applications where output positional control is required. These servos rotate 180° degrees. The shaft can be moved to any required angle using a PPM signal. Servo motors are the easiest-to-use motors as they do not require external motor drivers, feedback sensors, etc. Just connect it to your microcontroller to a Digital IO pin and you can start controlling the servo motor.

Features:

• High-performance digital standard servo

• High-precision metal gears with hard anodizing

• CNC aluminum middle Shell

• Dual ball bearings

Specification:

• Module: DS3135 40KG Large Torque Digital Servo

• Gear Type: Metal

• Motor Type: Brushless motor

• Operating Voltage: 5 ~ 8.4 DC Volts

• Stall Torque (8.4V): 40 kg/cm

• Speed:  0.08 sec/60°(8.4V)

• Dead band: 2μs

• Max frequency: 500-2500us

• Max Rotation Angle: 180°

• Size: 40 x 20 x 40.5 mm

• Weight: 55 gm
