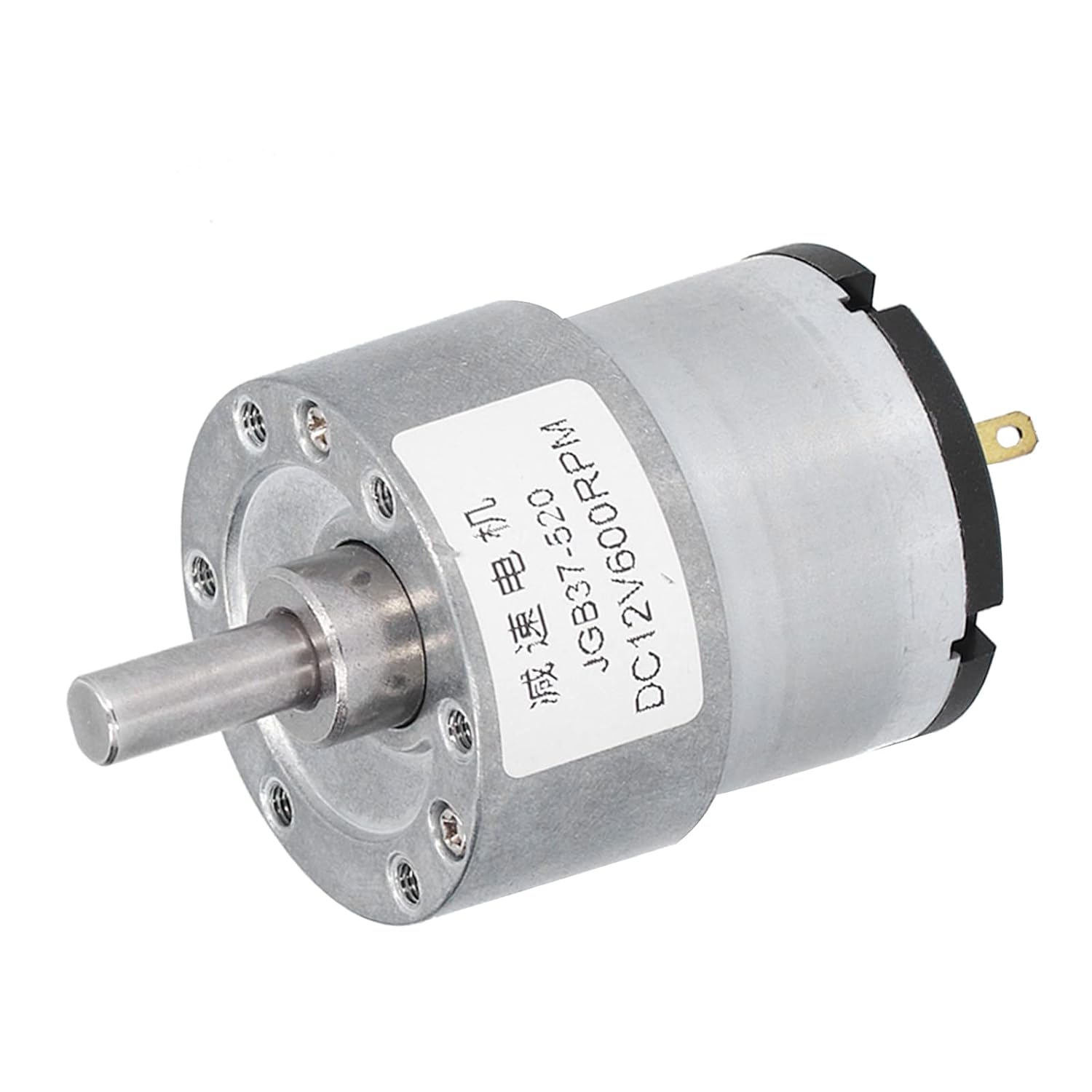

JGB37-250 All Metal Gear Box Reduction DC Motor

No-load Speed: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm

Max Power: 10W

Motor Diameter: 33mm

Output Shaft Diameter: 6mm

Output Shaft Length: 15mm

Rated voltage have, DC 12V

Operating Temperature and Humidity:

Temperature range of -10C+50C

,Humidity range of 30%80%.

1-4Storage Temperature:Temperature range of -20C~+60C

it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V,24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

Direction of rotation of the motor: CW Or CCW, Support Reversed;

Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

Gear material: Metal gears make the motor last longer

This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
