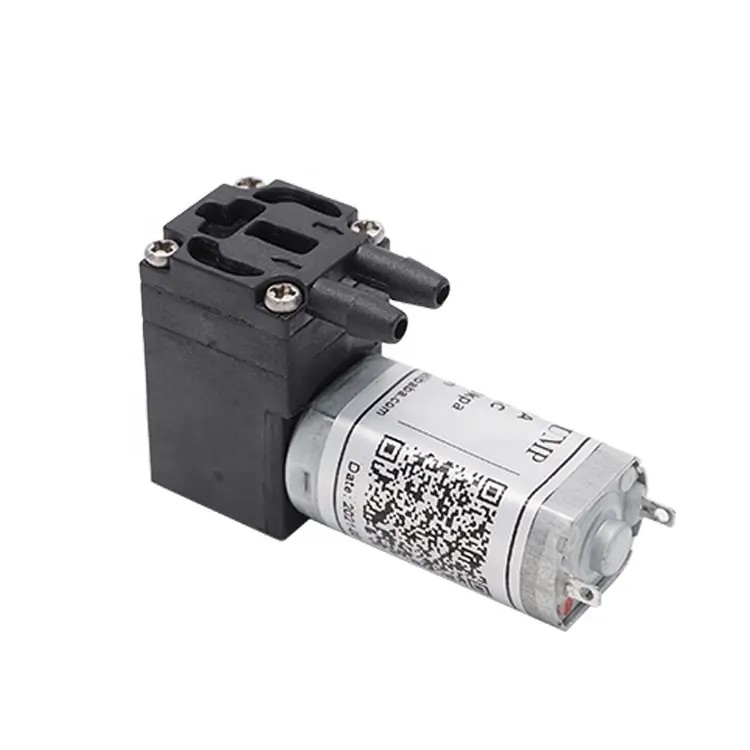

Vacuum Pump is a compact and efficient device designed for use in applications that require reliable vacuum generation. This vacuum pump is ideal for both continuous and intermittent operations, powered by a brush DC motor. It offers precise performance with low noise and is suitable for various air and vacuum handling applications.

Key Specifications:

• Voltage: 12V

• No-load Current: ≤0.1A

• Maximum Vacuum: ≥-30 kPa

• Maximum Flow Rate: ≥0.5 L/min

• Noise Level: Low

• Pump Head Material: PPS

• Membrane Material: EPDM

• Valve Material: EPDM

General Specifications:

• Dimensions: 45 x 25.5 x 15.5 mm

• Inlet/Outlet Size: ID: 1.8 mm / OD: 4 mm

• Weight: 24g

• Motor Type: Brush DC Motor

• Operating Temperature Range: 0-40℃

• Ambient Humidity Range: <80% RH

• Lifetime: >300 Hours

Customizable Parameters:

The BD-01V can be customized for specific pressure ranges and flow requirements. It is compatible with different motor types, including short and long-life brush or brushless DC motors.

Applications:

Ideal for laboratory equipment, small air handling systems, and portable devices that require a reliable vacuum pump with controlled specifications.
