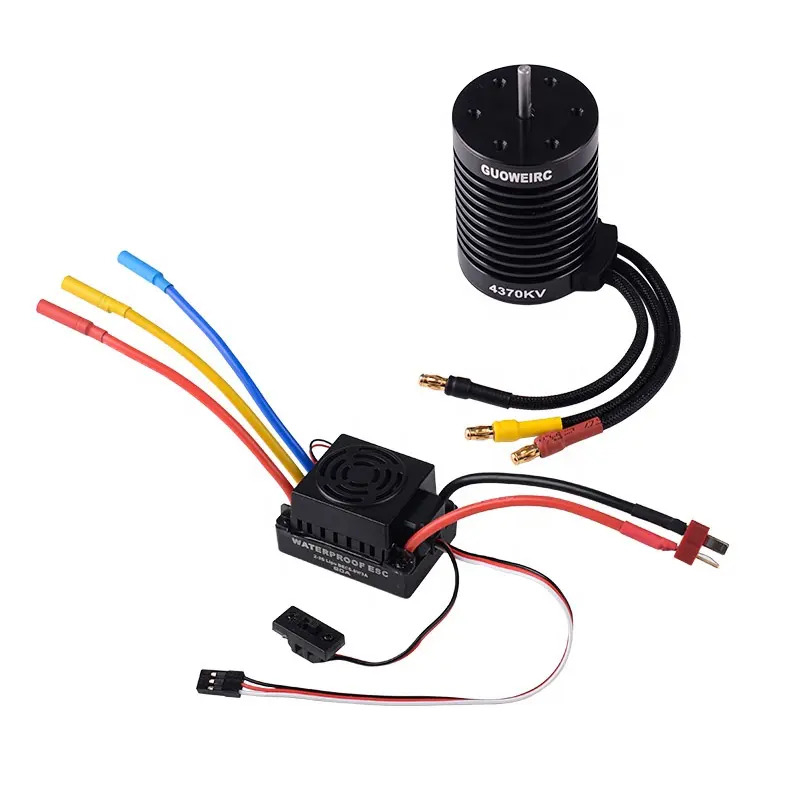

F540 Brushless Motor for Car — Extracted Description

Features

• 4‑pole, 12‑slot high‑torque motor design

• CNC‑machined 6061‑T6 billet‑aluminium heatsink can

• High‑purity copper windings maximize efficiency

• High‑RPM ABEC‑5 oversized bearings

• Universal fit for all 1/10‑scale brushless cars — multi‑mounting system for M3 screws

• Precision‑balanced rotor for maximum smoothness, reliability and RPM

• Super‑thin stator laminations (0.35 mm)

• Removable / replaceable rotor

• Precision‑engineered for maximum energy conversion

• “Product structure” drawings shown (three‑view dimensional sketches)

Motor Specifications

Parameter Value

KV (RPM/V) options 3000 KV / 3300 KV / 3930 KV / 4370 KV

Rated power 820 W

Maximum speed 50 000 rpm

Maximum voltage  < 18 V

Maximum current 66 A

Rotor poles 4

Diameter 35 mm

Length 50 mm

Shaft diameter 3.175 mm

Shaft length 15 mm

Connector type 4.0 mm gold bullet

Weight 148 g

60 A Waterproof ESC

• Continuous current: 60 A

• Burst current: 320 A

• Battery compatibility: 2 – 3 S Li‑Po / 4 – 9 S Ni‑MH or Ni‑Cd

• BEC output: 5.8 V  @  3 A

• Power‑supply connector: T‑plug (male)

• Motor leads: 4 mm banana‑plug (female)
