Product description

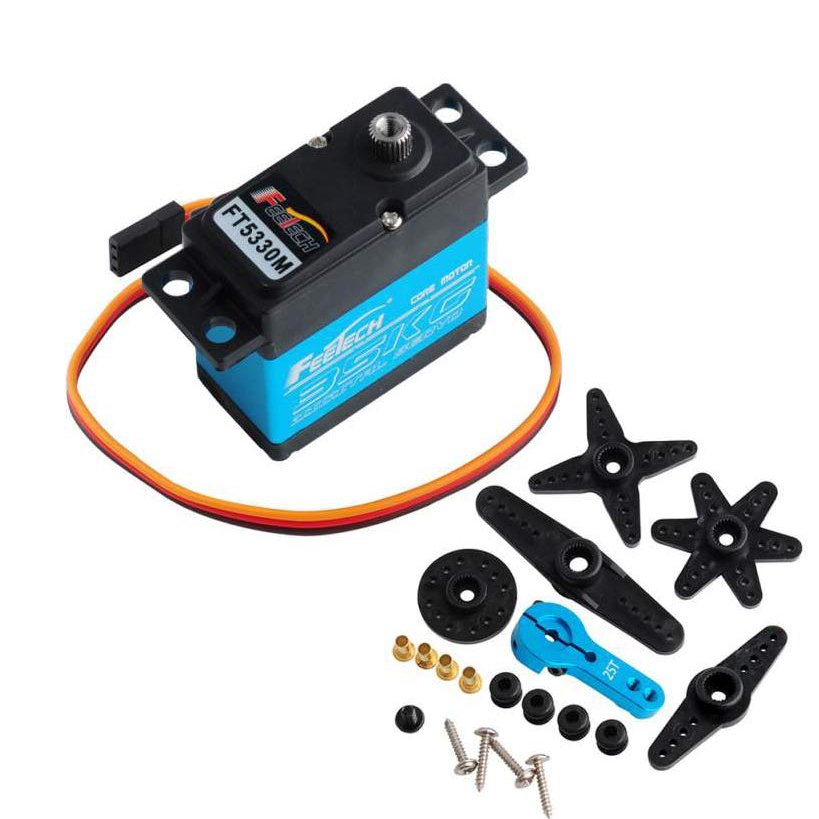

FT5330M RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots.
It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive.
It is tailored for RC hobbyist to provide different experience and delight.

Electrical Specification：
Operating voltage range: 4-8.4V
Operating speed ( 6V ): 0.238sec/60°(42RPM)
Operating speed ( 7.4V ): 0.192sec/60°(52RPM)
Stall torque ( 6V ): 28.8kg/cm
Stall torque ( 7.4V ): 35.5kg/cm
Running current no load ( 6V ): 150mA
Running current no load ( 7.4V ): 180mA
Stall current at locked ( 6V ): 3.2A
Stall current at locked ( 7.4V ): 3.9A
Idle current (at stopped): 6mA
Rated torgue ( 6V ): 9.5kg.cm
Rated torgue (7.4V ): 11.8kg.cm
Rated current ( 6V ): 1000mA
Rated current ( 7.4V ): 1200mA

Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 180° (when 500-2500μsec)
Dead band width: ≤4μsec
Rotating direction: Counterclockwise (when 1500-2500μsec)

Product Specification:
Size: 40 20 38.5mm
Weight: 67g
