Features:

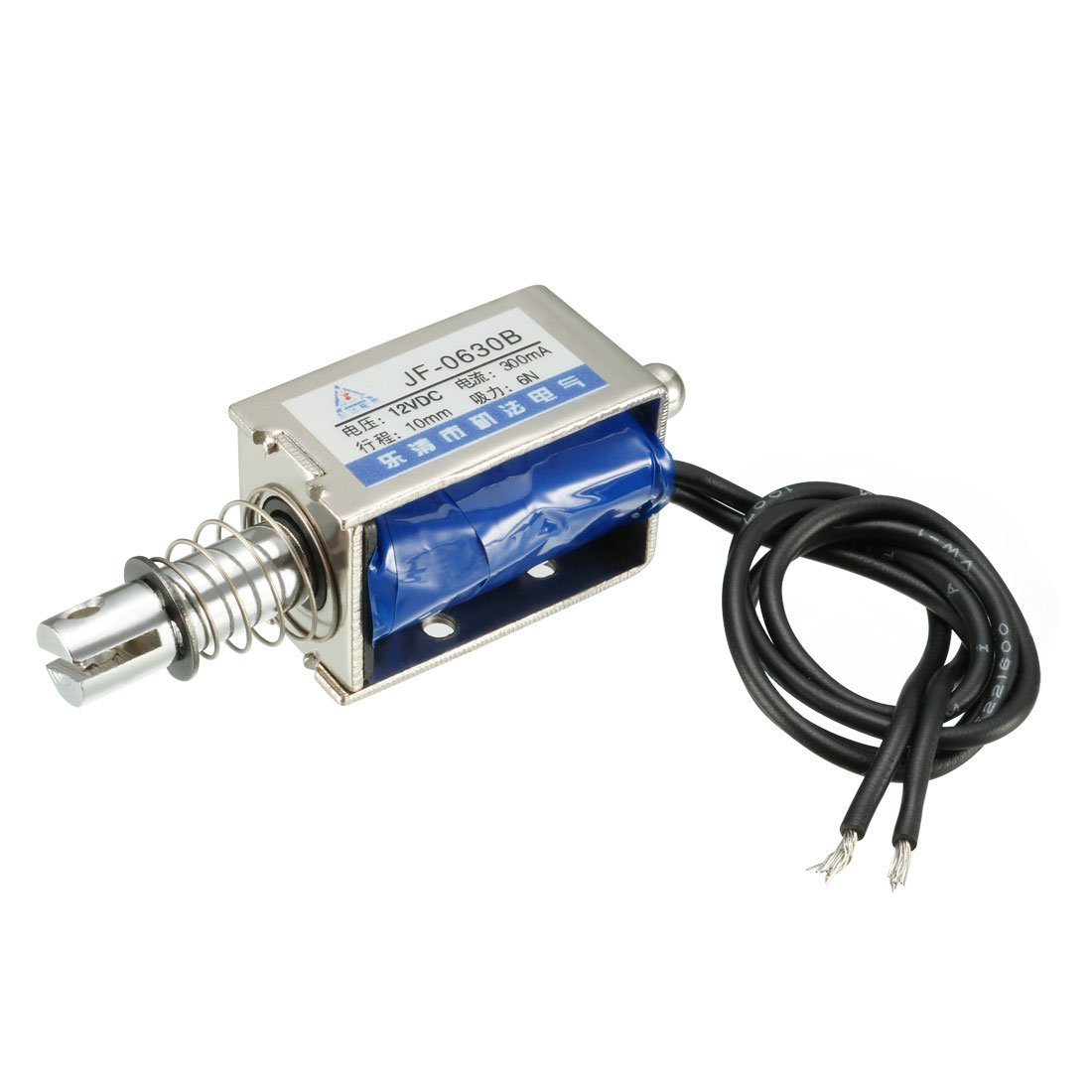

• Model: JF-0630B

• Iron Body Material

• High quality ultra-compact electric lock.

• Rustproof, durable, safe, convenient to use.

• Suction which tightly sucks the iron, thus locking the door.

• Designed with the open frame type and mount board, high power.

• Easy to install for the electric door lock or other automatic door lock systems with the mounting board

• Applicable for being installed in the escape door or fire door electronic controlled system.

• Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

• Rated stroke: 10mm

• Operating Voltage: 12V DC

• Current: 2A

• Operation Mode: Push-Pull (Normally Closed)

• Holding Force: 6N (0.6 Kg)

• Dimensions (mm): 30 x 14 x 19

• Cable Length: 15 cm

• Weight: 50 gm

DC 12V 2A Push Pull Solenoid electromagnet, 10mm 6N Push Pull Type, open frame type, linear motion, plunger spring return, open coil form, DC electron magnet. Used widely in home appliances, vending machines, a game machine, auto door lock.This DC 12V 2A 10mm 6N Push Pull Solenoid Electromagnet can be used for locking sell-machine, storage shelf and file cabinet. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on.It is steady, durable and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing.

Note: Take care of polarity while making the connection.
