Step angle:1.8° Temperature rise:below 80 ℃
Ambient temperature:-20 ℃ ~ + 50 ℃
Insulation resistance:minimum 100MΩ, 500VDC
Dielectric strength:500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance:0.08Max. (450 g load)
Maximum radial force:220N (20mm from flange)
Maximum axial force:60N

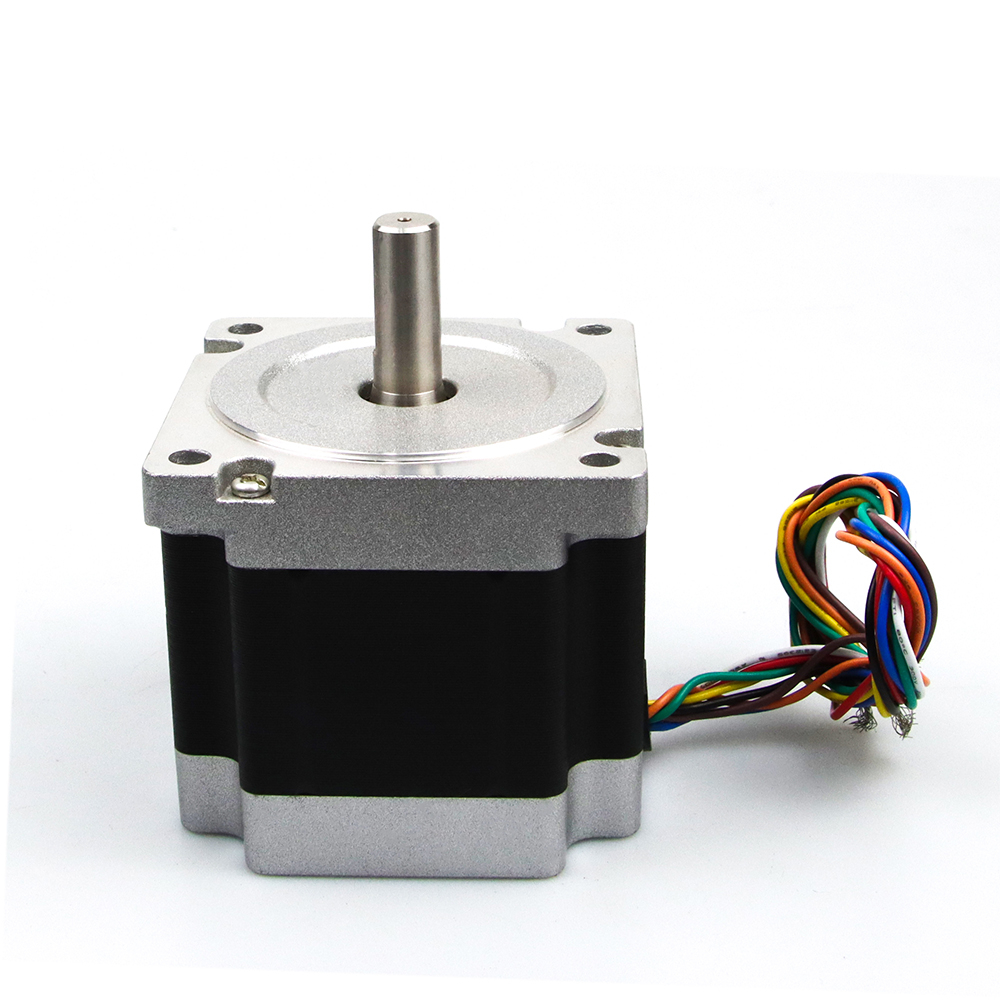

Model Number: nema34 stepper motor
Phase: 2
Type: Hybrid
Holding Torque: 3.4N.m
Current / Phase: 2.8A~6.0A
Motor length: 67mm~155mm
Leads: 4-leads or 8-leads
Detet Torque: 0.8g.cm~3.6kg.cm
Rotor Inertia: 1000g.cm2~4000g.cm2
Weight: 1.7kg~5.4kg
