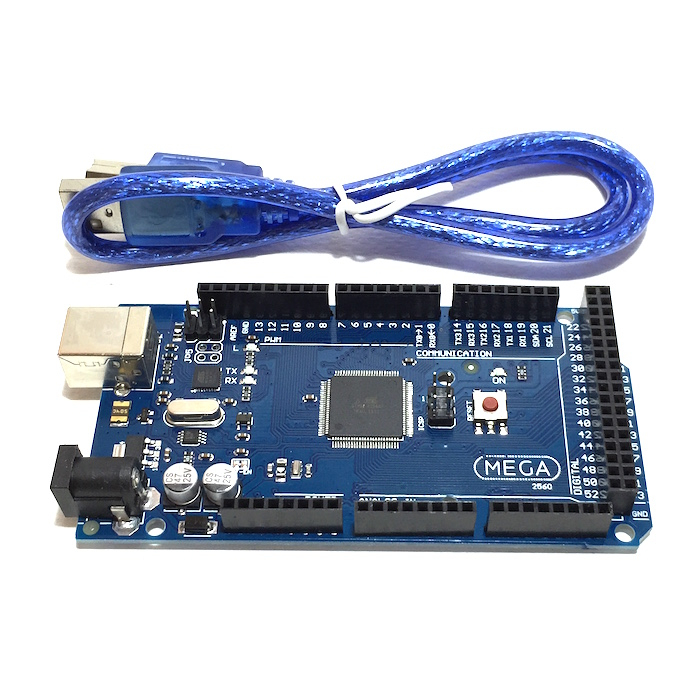

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

•  Microcontroller ATmega2560

• Operating Voltage 5V

• Input Voltage (recommended) 7-12V

• Input Voltage (limit) 6-20V

• Digital I/O Pins 54 (of which 15 provide PWM output)

• Analog Input Pins 16

• DC Current per I/O Pin 20 mA

• DC Current for 3.3V Pin 50 mA

• Flash Memory 256 KB of which 8 KB used by bootloader

• SRAM 8 KB

• EEPROM 4 KB

• Clock Speed 16 MHz

• LED_BUILTIN 13

• Length 101.52 mm

• Width 53.3 mm

• Weight 37 g
