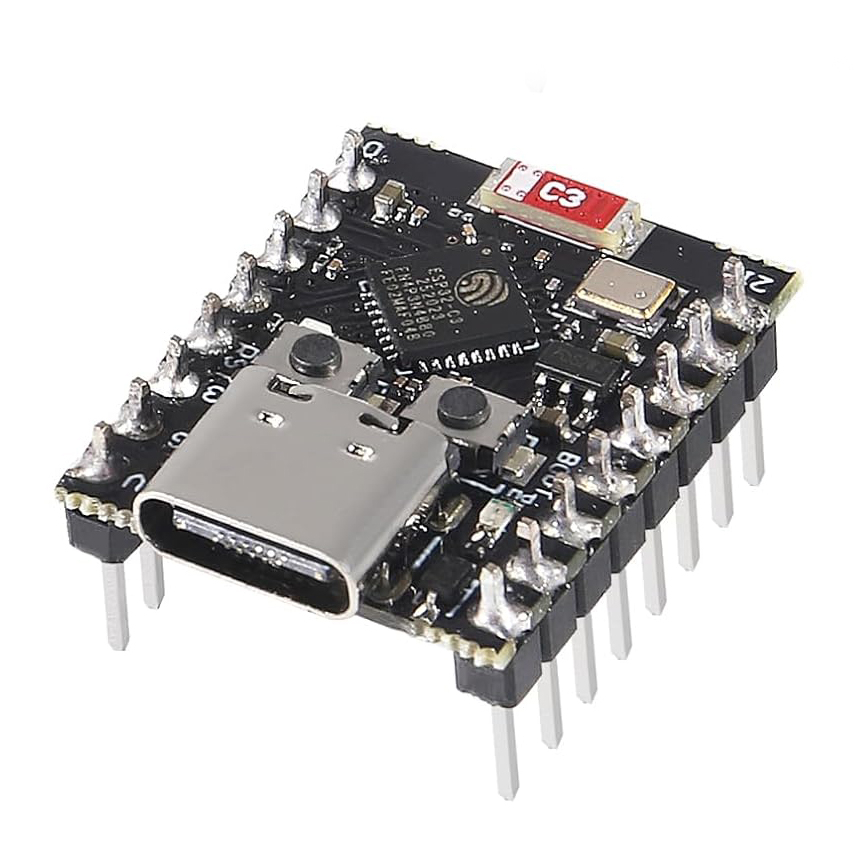

ESP32C3 ESP32 Super Mini Development Board Wi-Fi+BT ESP32-C3 Chip 3.3-6V

The ESP32C3 Super Mini Development Board is a high-performance, ultra-compact solution for IoT applications. Designed with a robust ESP32-C3 chip, it supports WiFi, Bluetooth, and a wide range of interfaces, making it ideal for wearable devices, embedded systems, and other small projects. With powerful processing capabilities and excellent connectivity, this development board is perfect for IoT enthusiasts and professionals.

Key Features:

1. Powerful Processor:

   • Equipped with the ESP32-C3 chip.

   • 32-bit RISC-V single-core processor running at up to 160MHz.

2. Connectivity:

   • WiFi: Supports 802.11b/g/n protocol at 2.4GHz.

   • Bluetooth: Version 5.0 for advanced wireless communication.

3. Memory and Storage:

   • 400KB SRAM, 384KB ROM, and 4MB Flash for application storage and execution.

4. Ultra-Low Power Consumption:

   • Deep sleep power consumption of approximately 43μA.

5. Rich Interfaces:

   • Includes 1x I2C, 1x SPI, 2x UART, 11x GPIO (PWM), 4x ADC.

6. Compact Size:

   • Small form factor (22.52mm x 18mm), perfect for wearables and tight spaces.

7. Security:

   • Features cryptographic hardware accelerators for AES-128/256, RSA, HMAC, hashing, and digital signatures.

8. Convenient Design:

   • Single-sided component layout with onboard blue LED (GPIO 8) for easy debugging and testing.

   • Supports both USB and external power supply (3.3-6V).

Applications:

• Internet of Things (IoT) devices.

• Wearable devices and sensor nodes.

• Home automation and smart devices.

• Embedded systems development.

• Wireless sensor networks.

Technical Specifications:

• Chip Model: ESP32-C3FN4

• Power Supply: 3.3V-6V (USB or external supply, not simultaneously)

• WiFi Protocol: 802.11b/g/n

• Bluetooth: 5.0

• Memory: 400KB SRAM, 384KB ROM, 4MB Flash

• Interfaces: 1x I2C, 1x SPI, 2x UART, 11x GPIO (PWM), 4x ADC

• Size: 22.52mm x 18mm

• Power Consumption: 43μA (Deep Sleep)

• LED Indicator: Onboard blue LED (GPIO 8)
