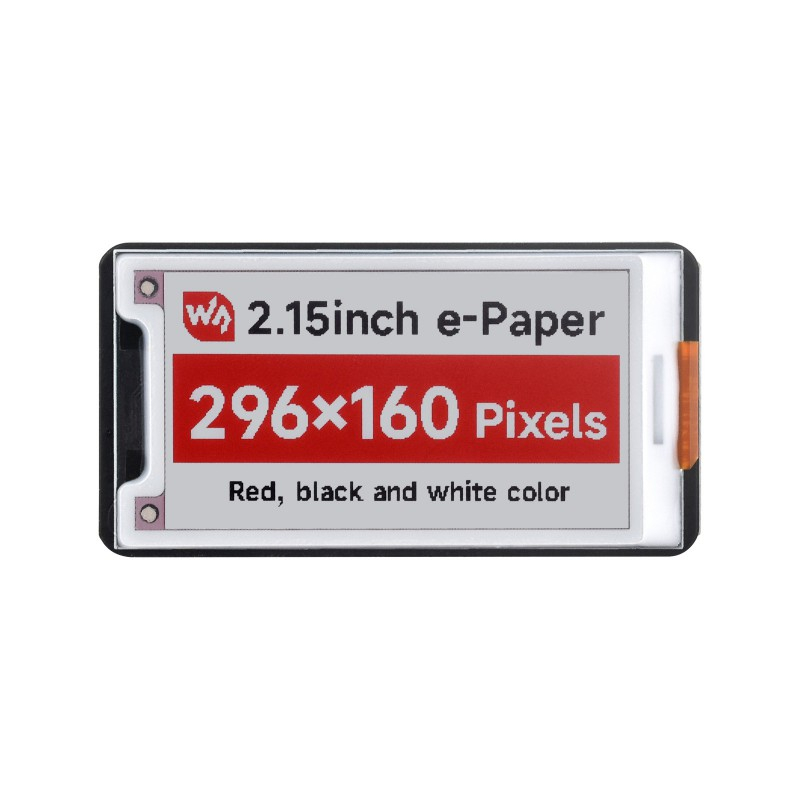

Features at a glance

• No backlight, keeps displaying last content for a long time even when power down

• Ultra low power consumption, basically power is only required for refreshing

• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / RDK X3 / Arduino / STM32)

• Optional for e-Paper driver board:


  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano, RDK X3

  • Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi

  • Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32, etc.

  • Onboard voltage translator, compatible with 3.3V / 5V MCUs

| Specification | Value |

|-----------------------------|---------------------------------------------------------------------------|

| Operating voltage | Raw display : 3.3 V | With driver board : 3.3 V / 5 V |

| Display colour | Red / Black / White |

| Interface | 3-wire SPI, 4-wire SPI |

| Outline dimensions (mm) | Raw display : 60.8 × 31.8 × 1.00 | With driver board : 65 × 34 |

| Display size (mm) | 48.10 × 26 |

| Dot pitch (mm) | 0.1625 × 0.1625 |

| Resolution (pixels) | 296 × 160 |

| Grey scale | 2 |

| Full-refresh time | 23 s |

| Refresh power | < 15 mW |

| Stand-by current | < 0.01 µA (almost none) |

| Viewing angle | > 170° |
