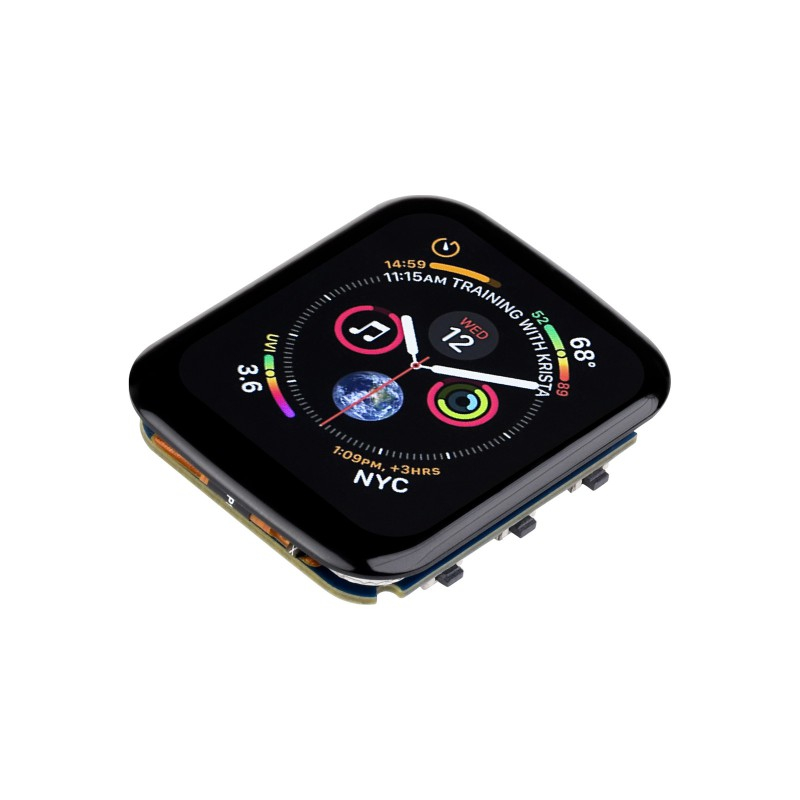

البورد مزود بامكانية الاتصال عبر الواي فاي والبلوتوث وحساس QMI8658 بستة محاور (تعجيل وجيروسكوب) لاكتشاف الحركة والإيماءات وملحق RTC من نوع PCF85063 تجمع هذه اللوحة بين المرونة والتفاعل باللمس وإدارة الطاقة الفعالة، مما يجعلها مثالية لتطوير أجهزة إنترنت الأشياء، الأجهزة القابلة للارتداء، والأجهزة الذكية مثل الساعات.

ESP32-S3-Touch-LCD-1.69

Embedded with ST7789V2 Display Driver and CST816T Capacitive Touch Chip

Version Options

ESP32-S3-LCD-1.69
without touch control

ESP32-S3-Touch-LCD-1.69
with touch control

Features

ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.69inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• Equipped with ESP32-S3R8 Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency

• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna

• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

• Type-C connector, keeps it up to date, easier to use

• Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures

• Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources

• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.

• Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement

• Onboard RST, BOOT and a programmable PWM button for easy custom function development

• Onboard 3.7V MX1.25 lithium battery recharge/discharge header

• Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging

• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

• High touch screen transmittance, fast response and long lifetime

Small Size, Touch More Possibilities

Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

What's On Board

1. ESP32-S3R8
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM

2. W25Q128JVSIQ
   16MB NOR-Flash

3. PCF85063
   RTC chip

4. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

5. ETA6098
   high-efficiency Lithium battery recharge manager

6. MX1.25 battery header
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

7. USB Type-C connector
   for programming and log printing

8. Buzzer
   sound-producing peripheral

9. RTC battery header
   for connecting rechargeable RTC battery, supports charging and discharging

10. Onboard antenna
    supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)

11. PWM button
    supports battery power supply control, single-press, double-press, multi-press and long-press operations

12. BOOT button

13. RST Reset button

Pin Definition

outline dimensions
