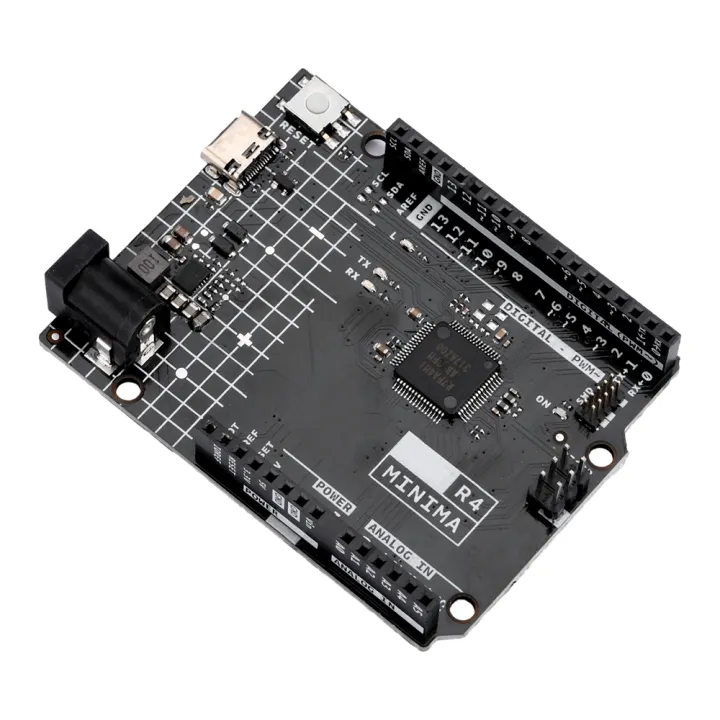

Arduino Uno R4 Minima is a powerful upgrade from the previous generation, featuring the Renesas RA4M1 microprocessor. It offers improved processing power, expanded memory, and additional on-board peripherals. This board maintains the classic Arduino UNO format while adding new features, including a 12-bit DAC, CAN BUS, and OP AMP. Its USB-C port enhances connectivity, and it supports a wider input voltage range, up to 24V, making it compatible with a variety of actuators and external devices.

Key Features:

1. Microprocessor: Renesas RA4M1 (Arm® Cortex®-M4 with Floating Point Unit).

2. USB-C Programming Port: Includes USB-C for programming and HID support to simulate a mouse or keyboard.

3. Onboard Features:

   • Digital I/O Pins: 14

   • Analog Input Pins: 6

   • PWM Pins: 6

   • 12-bit DAC: 1 channel

4. Communication Protocols: UART, I2C, SPI, and CAN (requires an external transceiver).

5. SWD Connector: Allows for easy debugging via an external debugger.

6. Voltage:

   • Operating Voltage: 5V

   • Input Voltage (VIN): 6-24V

   • DC Current per I/O Pin: 8 mA

7. Enhanced Memory and Clock Speed:

   • Flash Memory: 256KB

   • RAM: 32KB

   • Clock Speed: 48 MHz

Specifications:

• Dimensions: Width 68.85 mm, Length 53.34 mm

• Weight: 0.03 kg

• Compatibility: Easily programmable using the Arduino IDE software.

Applications:

• Prototyping and Embedded Systems: Ideal for developing applications requiring high processing power and multiple peripherals.

• IoT and Automation: Suitable for projects that need reliable connectivity and control of sensors, actuators, and external devices.

• HID Projects: Can be used to create projects that simulate mouse or keyboard functions.

The Arduino Uno R4 Minima is an excellent choice for both beginners and advanced users, offering enhanced capabilities for a wide range of electronics and IoT projects.
