بورد اي اس بي 32 سي 3 من شركة سيد ستوديو side image

بورد اي اس بي 32 سي 3 من شركة سيد ستوديو side image

بورد اي اس بي 32 سي 3 من شركة سيد ستوديو side image

بورد اي اس بي 32 سي 3 من شركة سيد ستوديو side image

بورد اي اس بي 32 سي 3 من شركة سيد ستوديو side image
IQD 11,000

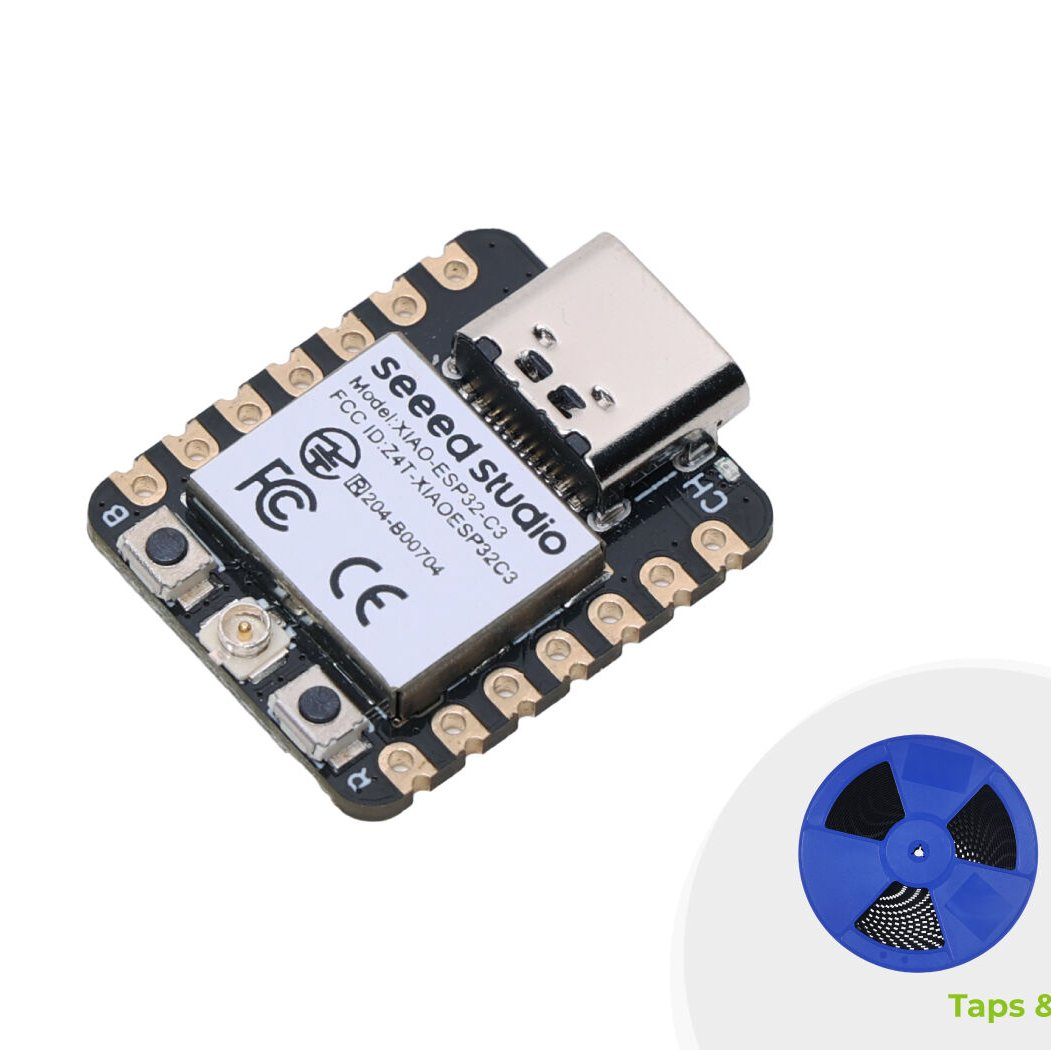

Flexible MCU Module: Incorporates the ESP32-C3 32-bit RISC-V chip operating up to 160 MHz, mounted as a single-sided SMD module without through-hole headers, supported by Arduino/CircuitPython
Outstanding RF performance: Implement complete Wi-Fi functions and Bluetooth Low Energy, while supporting communication over 100m with a U.FL antenna
Elaborate Power Design: Provide 4 working modes as low as 44 μA in deep sleep mode, while supporting lithium battery charge management
Perfect for Production: Breadboard-friendly & SMD design, no components on the back
Specification
Parameter
Description
Processor
ESP32-C3 SoC
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz
Wireless
Complete 2.4GHz Wi-Fi subsystem
Bluetooth 5.0/ Bluetooth mesh
On-chip Memory
400KB SRAM & 4MB Flash
Interface
1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC
1x Reset button, 1x Boot button
Dimensions
21 x 17.8mm
Power
Circuit operating voltage: 3.3V@200mA
Charging current: 350mA/100mA
Input voltage (VIN): 5V
Deep Sleep Power Consumption
Deep Sleep Model: >44 μA
Wi-Fi Enabled Power Consumption
Active Model: <75 mA
Modem-sleep Model: <25 mA
Light-sleep Model: <4 mA
BLE Enabled Power Consumption
Modem-sleep Model: <27 mA
Light-sleep Model: <10 mA
Working Temperature
-40°C ~ 85°C
Hardware Overview
Onboard

PinOut

Application
Internet of Things
Wearable devices
Health monitoring
Education
Low-Power(LP) networking
Rapid prototyping
