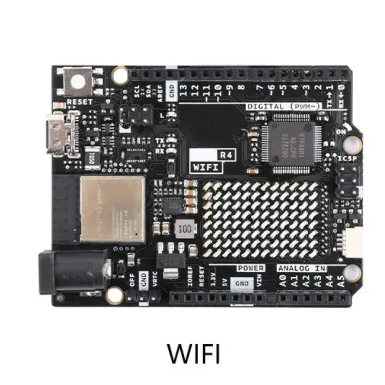

Arduino Uno R4 WiFi is a powerful development board that combines the classic features of the Uno series with enhanced performance and connectivity options. It features the Renesas R7FA4M1AB3CFM#AA0 microcontroller and an ESP32-S3-Mini coprocessor, enabling dual-mode WiFi and Bluetooth wireless communication. With advanced onboard features and a familiar form factor, the Uno R4 WiFi is perfect for creating IoT projects, prototyping, and integrating with existing Arduino ecosystems.

Key Features:

1. Enhanced Microcontroller Capabilities:

   • Renesas RA4M1 microcontroller with 48 MHz clock speed, providing faster processing power.

   • ESP32-S3-Mini coprocessor for high-speed wireless communication with WiFi and Bluetooth support.

2. Increased Memory and Performance:

   • RA4M1: 256KB Flash memory, 32KB SRAM.

   • ESP32-S3: 384KB ROM and 512KB SRAM, supporting complex tasks and large data handling.

3. New Onboard Features:

   • 12x8 LED Matrix (96 red LEDs): Ideal for displaying visual data, animations, and sensor readings directly on the board.

   • Qwiic Connector: Integrated Qwiic I2C socket for easy connection of I2C modules without the need for soldering.

4. USB Type-C Port:

   • Supports HID functionality, allowing the board to simulate a mouse or keyboard when connected to a computer.

   • Modern and fast data transfer capabilities.

5. Error Detection and Debugging:

   • Real-time error detection mechanism that alerts users to issues like division by zero, making debugging simpler and more effective.

6. Compatibility and Versatility:

   • Fully compatible with previous Arduino Uno shields, ensuring easy integration with existing projects.

   • Operates at a 5V logic level, maintaining backward compatibility with older systems.

Technical Specifications:

• Microcontroller: Renesas RA4M1 (48 MHz) and ESP32-S3 (up to 240 MHz).

• Memory: 256KB Flash, 32KB SRAM (RA4M1); 384KB ROM, 512KB SRAM (ESP32-S3).

• Input Voltage Range: 6V to 24V.

• I/O Pins: 14 Digital I/O, 6 PWM pins, 6 Analog inputs.

• Additional Communication Protocols: UART, SPI, I2C, CAN BUS.

• Dimensions: 68.85 x 53.34 mm.

Applications:

• IoT and Automation: Ideal for creating smart devices and connected systems with wireless communication.

• Data Visualization: Suitable for projects needing real-time data displays or graphical outputs using the built-in LED matrix.

• Prototyping and Development: A versatile tool for building and testing a variety of electronic circuits and software designs.

The Arduino Uno R4 WiFi offers significant improvements over its predecessors, making it a versatile choice for both beginners and advanced developers looking to build more complex and connected projects.
