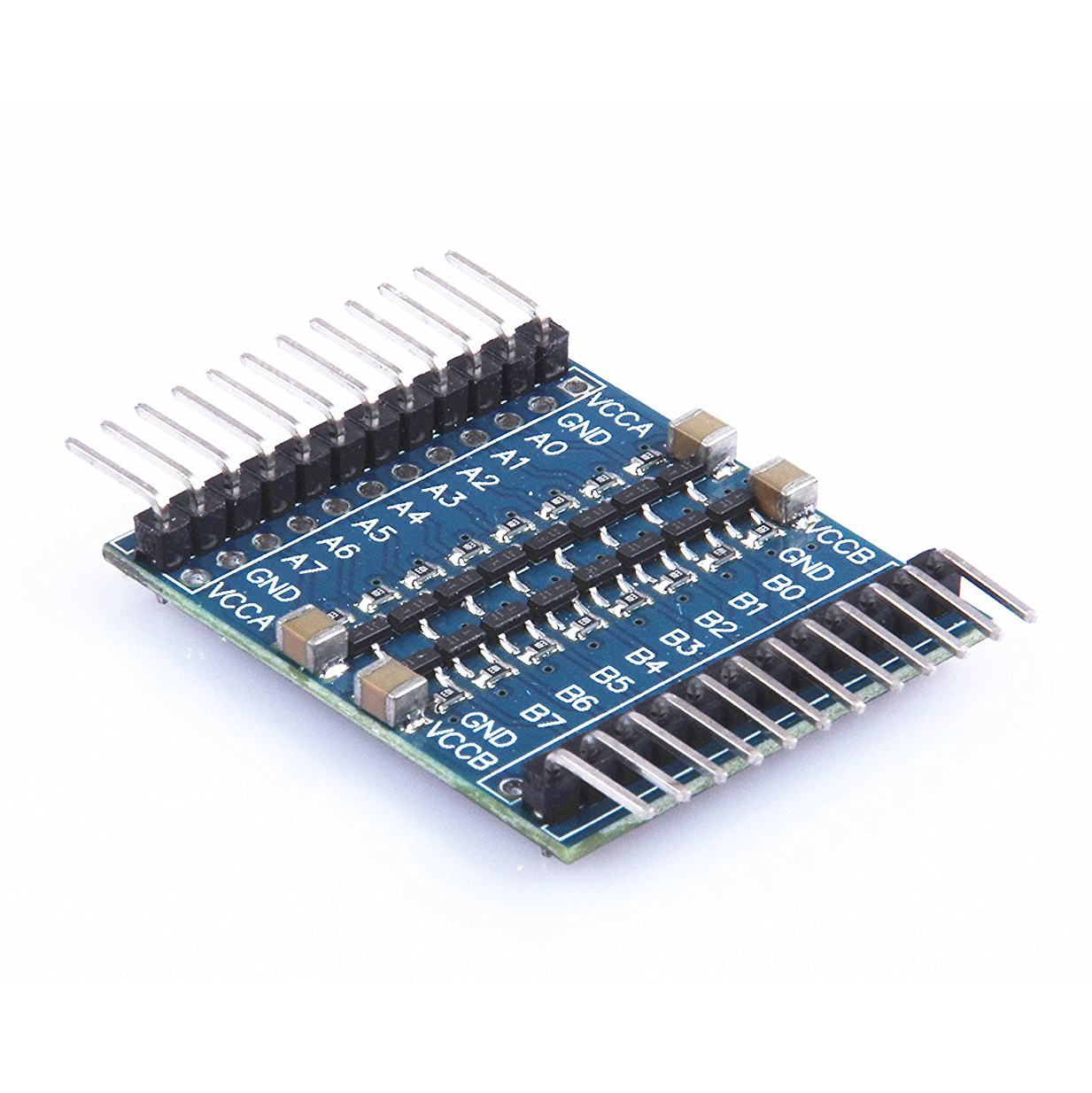

Raspberry Pi 8-Channel Level Switching IO Module is designed to enable seamless communication between devices operating at different logic levels, specifically from 1.8V to 6V. This module allows Raspberry Pi users to interface 5V sensors and peripherals with the Pi’s 3.3V GPIO, ensuring safe and stable bidirectional signal conversion between 3.3V and 5V devices without the need for direction control.

Key Specifications:

• Voltage Level Range: 1.8V to 6V

• Dimension: 38mm x 31.6mm

• Conversion Range: 1.8V - 6V

• Power Supply: VCCA (3.3V from Raspberry Pi), VCCB (5V or external 5V source)

Features:

• Bidirectional Conversion: 8 channels for easy translation between high (5V) and low (3.3V) logic levels.

• Multiple Power Interfaces: Four pairs of power supply interfaces support various applications and configurations.

• Power Filtering: Tantalum capacitors ensure stability in power filtering.

• Automatic Level Translation: Automatically converts between 3.3V and 5V systems on the Ax/Bx pins.

Usage Instructions:

1. Connect VCCA/VA to the 3.3V power supply.

2. Connect VCCB/VB to the 5V power supply.

3. Connect GND from each power supply to a common ground.

4. When Ax has a TTL 3.3V input, Bx outputs TTL 5V.

5. When Bx has a TTL 5V input, Ax outputs TTL 3.3V.

This module is ideal for Raspberry Pi projects requiring safe interfacing with higher voltage sensors and peripherals, making it an essential component for makers and developers working with mixed-voltage devices.
