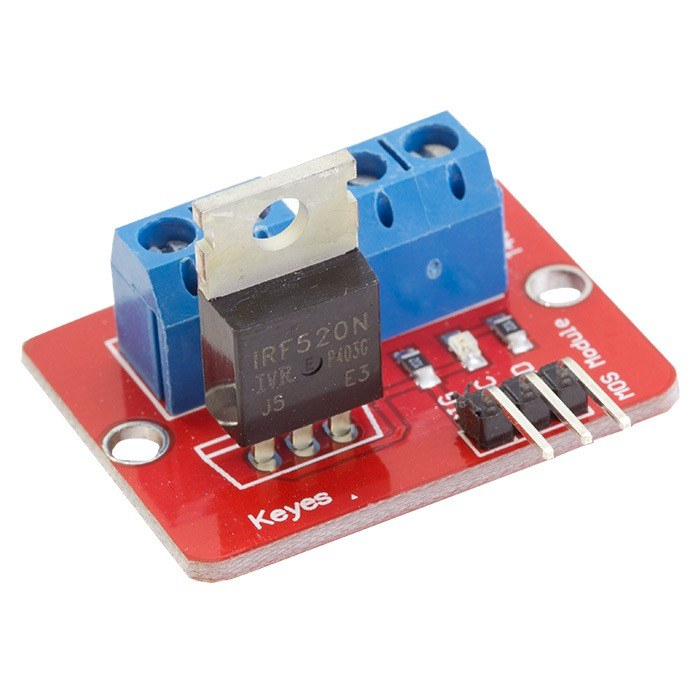

The module is designed to switch DC loads from a single digital pin of your microcontroller. Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface to your load and external power source. An LED indicator provides a visual indication of when your load is being switched.

Specifications:

Size: 3.53.2cm/1.31.2in

Voltage: 3.3V, 5V

Port: Digital quantity level

Output Load Voltage: 0-24V

Output Load Current: <5A (need heat sink if >1A)

Platform: SCM, for ARM, for Raspberry Pi

Weight: 4g(approx.)
