Feature:

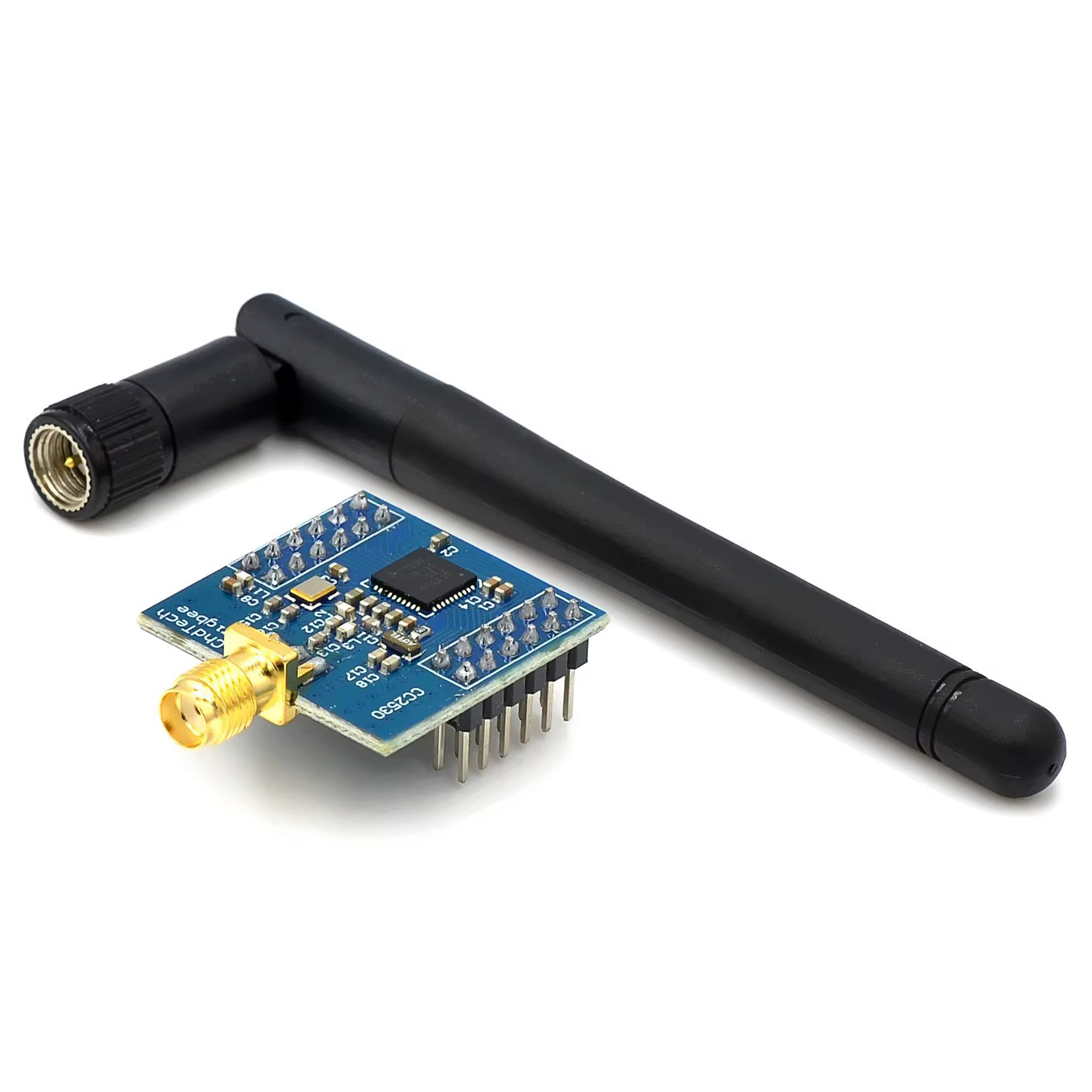

The ZigBee wireless module is designed with TI CC2530F256 that is a true system-on-chip (SOC) solution for IEEE 802.15.4, ZigBee applications, the module can be widely used in short distance wireless communication field, with low power consumption, small volume, strong anti-jamming capability.

The ZigBee module which is based on TI's CC2530F256+CC2591 chip running ZigBee2007/PRO agreement,it has all the features of the ZigBee protocol,which is different from other types of ZigBee module.

The module launch a self-forming, power-to-use ZigBee modules,users do not need to understand the complexity of the ZigBee protocol,all of the ZigBee protocol processing part,within the ZigBee module automatically,the user only needs to transmit data via the serial UART,is currently on the market the most simple way to use ZigBee applications.

Feature:

1.Antenna: 2.4G antenna with SMA interface

2.Transmission distance:800 m(with 3dBi antenna in the open environment)

3.Transparent serial data transmission

4.Supporting UART configuration commands

5.Transmission rate:Max to 2K Byte/s

6.TI CC2530 All IO ports expansion,including debug ports

Parameter:

Voltage: DC 2.1V~3.6V(3.3V is recommend)

Operating Temp: -40°C ~ 80°C (industrial)

Storage Temp: -40°C ~ 115°C

Size: Approx. 36.0*25.6 mm
