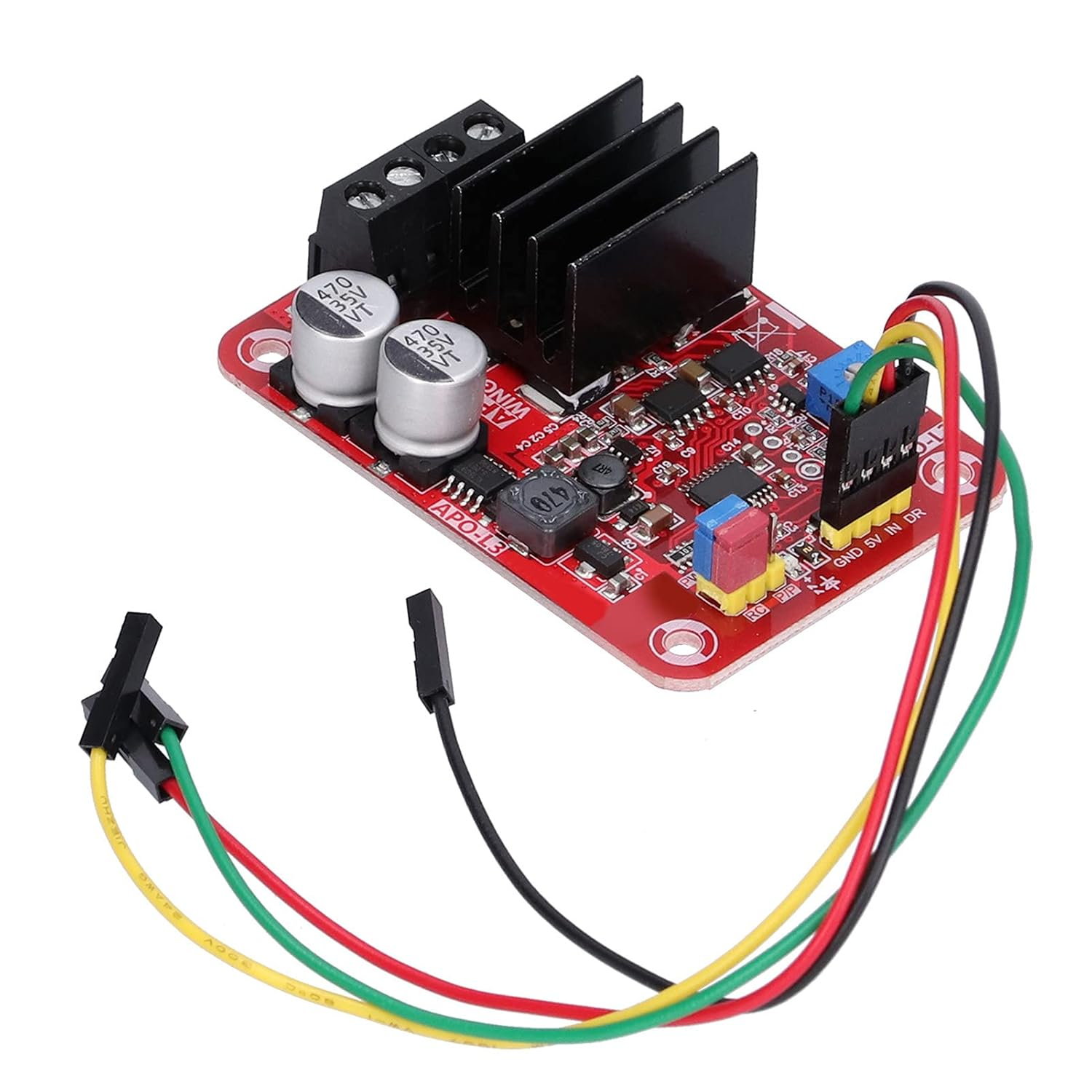

The APO-L3 is a compact, adjustable DC motor speed controller designed to regulate the speed of brushed DC motors through Pulse Width Modulation (PWM). Operating from a 7 V to 24 V DC input range, it can drive loads up to a maximum of around 240 W (depending on voltage and current), making it suitable for a wide variety of low-voltage DC motor applications such as power tools, pumps, fans, model cars, and more.

Key Features

1. Wide Operating Voltage Range (7V - 24V DC)

   • Supports a broad input voltage range suitable for most low-voltage DC motors and power sources (e.g., batteries, adapters, bench supplies).

2. High Power Output (up to 240 W)

   • Can drive DC motors rated up to ~240 W, depending on operating voltage and current demands.

3. PWM Control for Efficiency

   • Uses pulse width modulation (PWM) to deliver smooth and efficient speed control, helping maintain torque and reduce power dissipation as heat.

4. Adjustable Speed Control

   • A built-in potentiometer (knob) adjusts the duty cycle from nearly 0% (off) to 100% (full-on), allowing precise speed regulation.

5. Integrated On/Off Switch

   • Many models include a convenient in-line switch or a push-button/potentiometer combination so that the module can quickly turn the motor on or off.

6. Protection Features

   • Some variants include over-current or short-circuit protection (fuse or resettable fuse). Always check the specific product listing for details.

7. Compact and Lightweight

   • Designed with a small PCB footprint, making it easy to integrate into tight spaces.

8. Screw Terminals or Connector Blocks

   • Typically equipped with screw terminal blocks (or similar connectors) for secure input/output wiring.

9. Suitable for Various Applications

   • Commonly used in DIY projects, RC vehicles, laboratory controls, fans, and any application requiring continuous speed adjustment of a DC motor.

Typical Specifications

While specifications can vary slightly by manufacturer, these are typical values:

• Model: APO-L3 (sometimes listed under various brand names or “L3” boards)

• Operating Voltage Range: 7V to 24V DC

• Output Current (Max): ~10 A peak (usually recommended up to 8 A for continuous use, depending on heat dissipation)

  Always verify the current rating—some sellers specify 5 A or 10 A maximum. Sustained high current may require additional heat sinking.

• Power Rating: Up to ~240 W (Voltage × Current)

• PWM Frequency: Typically 13 kHz to 21 kHz (often ~20 kHz)

• Duty Cycle Adjustment Range: ~0% – 100%

• Control Interface: Integrated potentiometer (speed knob), often with a built-in on/off switch

• Dimensions: Commonly ~1.6–2.0 inches (L) × 1.2–1.4 inches (W) × 0.6–1.0 inches (H) (40–50 × 30–35 × 15–25 mm)

• Board Weight: ~15–30 grams, depending on style

Usage Notes

1. Connections:

   • Power Input: Connect the DC supply (7–24 V) to the “+” and “−” input terminals.

   • Motor Output: Connect the motor leads to the output terminals marked “Motor” or “M+” and “M−.”

2. Polarity:

   • Double-check polarity before powering on. Reversed connections can damage the module.

3. Heat Dissipation:

   • Under higher loads (especially above ~5–6 A), consider adding or improving heat sinking. Inadequate cooling can cause thermal shutdown or damage.

4. Motor Start Current:

   • DC motors can draw significantly higher current on startup (stall current). Choose a controller and power supply rated to handle these peaks.

5. Interference and Noise:

   • PWM switching can introduce electrical noise. Use proper grounding or filtering techniques if noise-sensitive components are nearby.

6. Use Case Examples:

   • Fans, blowers, pumps, small tools, RC models, robotics, lab projects, etc.
