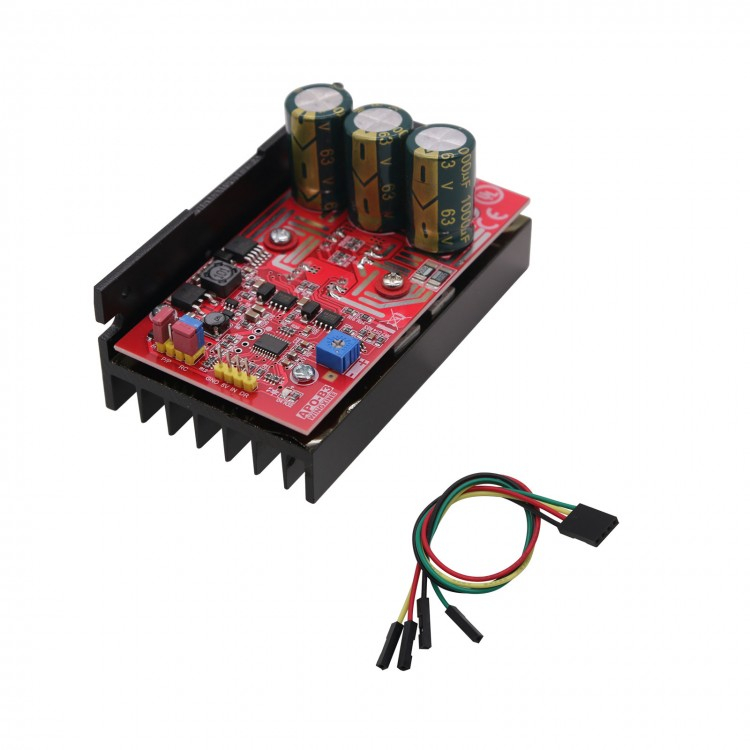

The APO-B3 is a versatile, compact PWM (Pulse Width Modulation) brushed motor controller designed for DC voltages in the range of 8 V to 48 V. With a current rating of up to 20 A (peak) and a maximum power output of approximately 720 W, it can drive a wide range of medium- to high-power brushed DC motors. This controller often includes both:

1. Standard RC (PWM) Input – Accepts the same 1–2 ms servo signal used by RC receivers, making it suitable for radio-controlled vehicles, robotics, and remote-actuated systems.

2. Potentiometer/Manual Input – A built-in or external potentiometer for direct manual speed control, turning the motor on or off and regulating speed from 0–100% duty cycle.

Because the APO-B3 typically supports multiple control modes (RC/servo signals or manual potentiometer), it’s sometimes referred to as an “ESC + Governor,” merging the functionality of a traditional RC electronic speed controller with that of a simple motor driver.

Key Features

1. Wide Input Voltage Range: 8 V–48 V DC

   • Suitable for a variety of battery voltages (e.g., 2S–10S LiPo packs), bench power supplies, or other DC sources.

2. High Current Capacity: Up to 20 A (Peak)

   • Designed to handle 20 A peak current (often 15–20 A continuous, depending on heat dissipation and airflow).

   • Maximum Power: ~720 W (e.g., 48 V × 15 A).

3. Multiple Control Methods

   • RC/Servo Input: Uses standard 50 Hz servo pulses (1–2 ms pulse width) for speed/throttle control.

   • Potentiometer Input: Often includes a potentiometer (knob) or the ability to connect one externally, letting you adjust motor speed directly without an RC receiver.

4. PWM Speed Regulation

   • Efficient control and reduced heat generation. Maintains higher torque at lower speeds compared to purely resistive controls.

5. Potential Onboard BEC or Regulator

   • Some versions offer an onboard low-power regulator (5 V output) for powering an RC receiver or external control logic. (Check listing details; not all have this feature.)

6. Forward-Only Operation

   • Typically configured for forward-only speed control (no electronic reversing). If reverse is required, a specific H-bridge or reversing variant must be used.

7. Heat Dissipation / Cooling

   • May include a small heat sink or require additional cooling if running near peak current for extended periods.

8. Compact Form Factor

   • Usually a small PCB with screw terminal blocks for quick wiring (power in, motor out, and control inputs).

9. Protection Features

   • May include various protection elements (over-current, short-circuit, or thermal protection). Actual protections vary by manufacturer.

10. Typical Applications

    • DIY RC vehicles, drones (for brushed motors), robotics, industrial or hobby projects that require a DC motor to be controlled by a servo signal or manual speed knob.

Typical Specifications

Note: There may be small differences between various “APO-B3” or “B3” models. Always confirm details from the specific product documentation.

• Model: APO-B3 (or B3-series)

• Input Voltage: 8–48 V DC

• Output Current:

  • Peak: ~20 A

  • Continuous: 15–20 A (depending on cooling and operating conditions)

• Max Power: ~720 W (48 V × 15 A)

• PWM Frequency: ~16 kHz to 20 kHz (typical)

• Control Signals:

  • RC Mode: 50 Hz servo pulses (1–2 ms)

  • Manual Mode: Potentiometer, typically 10 kΩ

• Duty Cycle Range: 0–100%

• Dimensions: Often ~50–60 mm (L) × 35–45 mm (W) × 15–25 mm (H)

• Weight: Usually 30–50 g

Connection & Operation

1. Power Input

   • Connect your DC supply (battery, adapter, etc.) to the labeled “V+” and “V−” or “Power +”/“Power –” terminals.

   • Ensure correct polarity to prevent damage.

2. Motor Output

   • Attach the two leads of your brushed DC motor to the “M+” and “M–” terminals.

3. Control Input

   • RC (Servo) Mode: Typically, three pins or a three-wire connector (ground, +5 V or BEC output, and signal). Connect the signal line to your RC receiver’s throttle channel or similar output.

   • Potentiometer/Manual: If a potentiometer is provided on-board, simply turn the knob to change speed. If external, connect as directed by the manufacturer.

4. Heat Dissipation

   • If running high currents for extended periods, install a heat sink or ensure good airflow. The driver’s MOSFETs and onboard circuitry can overheat if not cooled properly.

5. Startup & Testing

   • Begin with a low supply voltage or a current-limited bench power supply if possible, especially for testing.

   • Gradually increase the voltage or the duty cycle to ensure stable operation.
