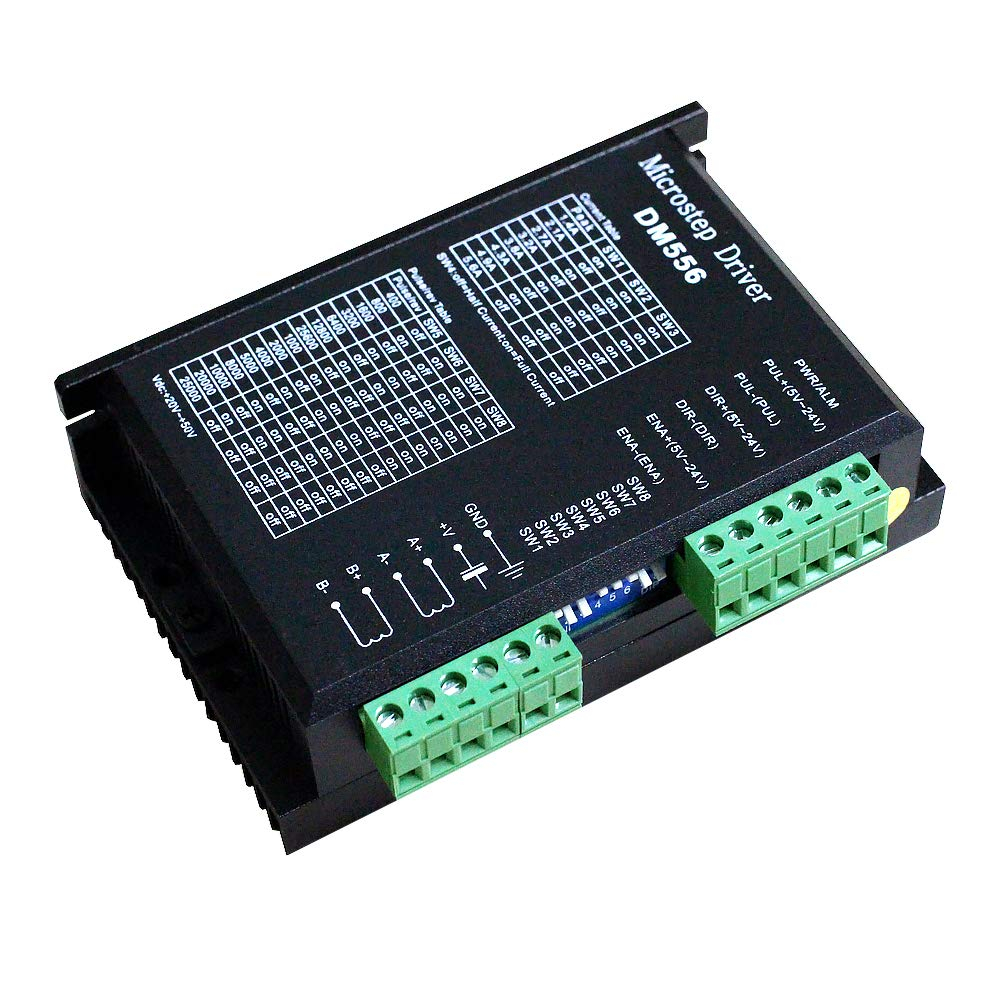

DM556 Stepper Motor Controller for CNC Drivers Controller 3D Printer Accessories is a versatility fully digital stepping drive based on a DSP with an advanced control algorithm. The DM556 is the next generation of digital stepping motor controls. It brings a unique level of system smoothness, providing optimum torque, and nulls mid-range instability. Motor self-test and parameter auto-setup technology offer optimum responses with different motors and are easy to use.

The advantage of using the DM556 Stepper Motor Controller for CNC Drivers Controller 3D Printer Accessories is to control the speed and position of the stepper motor. These drivers can be used for a small range of stepper motors. Using these kinds of drivers one can minimize the code and connections. In the DM556 Stepper Motor Controller, a new feature has been added where we can set the current Mode.SW4 is used for this purpose. OFF means that the standstill current is set to be half of the selected dynamic current, and ON means that the standstill current is set to be the same as the selected dynamic
current.

Specifications:

• Maximum Current: 7.2A

• Resolution: 0.1A

• Subdivision Range: 400~25600ppr

• Input Voltage Range: 24~80VDC or AC both OK

• Operating Temperature: -10°C ~ 45°C

Features:

• DM556 Stepper Motor Controller can drive a 4-wire, 8-wire two-phase stepper motor

• Power-on parameter auto-tuning function

• Precision current control greatly reduces motor heating

• DM556 Stepper Motor Controller has huilt-in micro-segment

• Optically isolated signal input, strong anti-interference ability

• DM556 Stepper Motor Controller comes with overvoltage, overcurrent and other protection functions

• The current is automatically halved at rest
