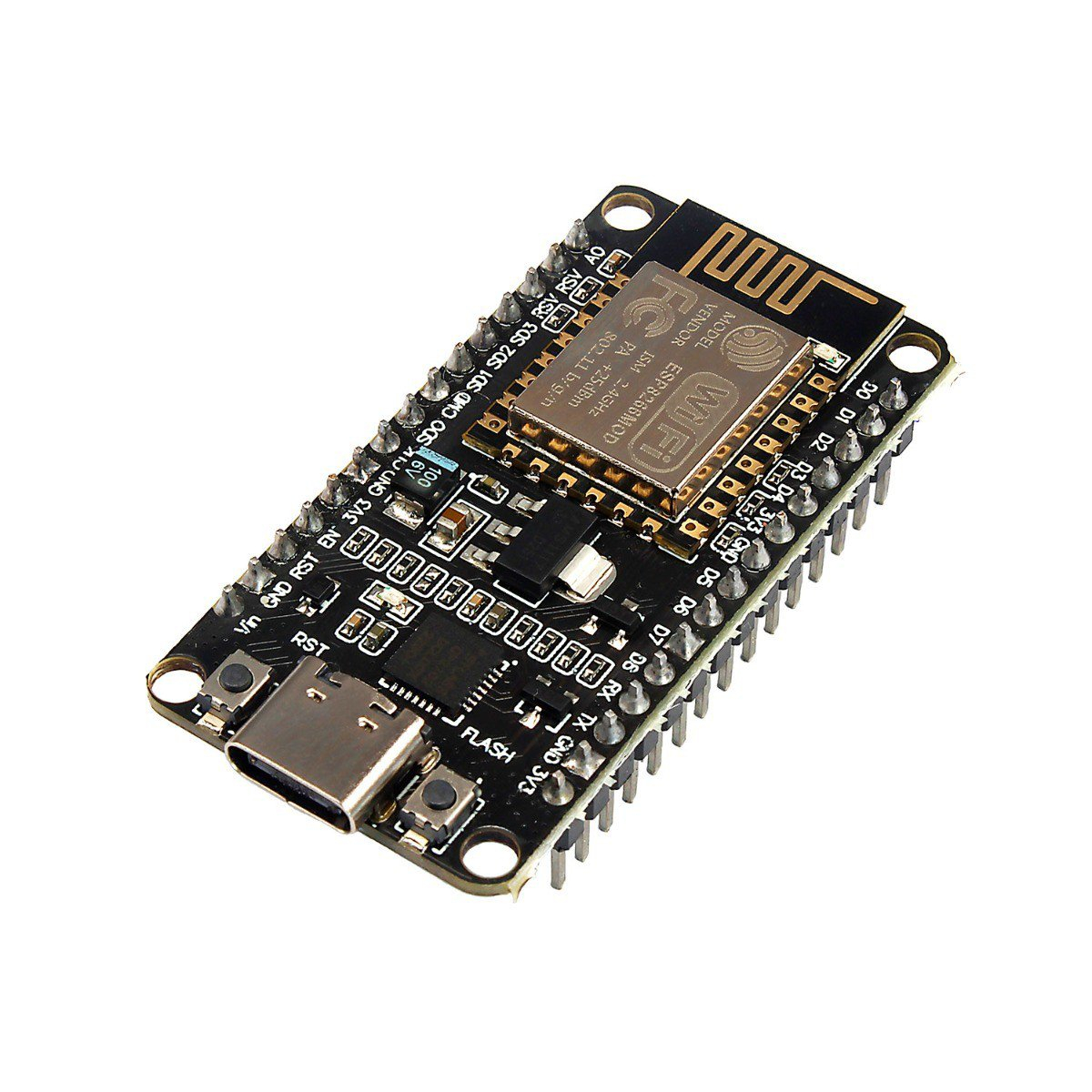

Features:
1.Use high-quality materials with guaranteed quality and stable performance;
2.ESP8266 has full IO ports for direct download without resetting;
3.Adopting a brand new CP2102 chip with powerful functions, developing a complete set of tools for ESP8266;
4.NodeMCU developed based on ESP8266, compatible with existing versions;
5.This product adopts the mainstream TYPE-C interface on the market, with a wide range of applications.

Parameters:
Chip model: CP2102
Interface: TYPE-C
ESP8266 full IO port export, direct download without reset
802.11 b/g/n
Built in 10 bit high-precision ADC
Built in TCP/IP protocol stack
Built in TR switch, balun, LNA, power amplifier, and matching network
Built in PLL, voltage regulator, and power management components, with an output power of+20 dBm in 802.11b mode, aggregation of A-MPDU and A-MSDU, and a protection interval of 0.4 seconds
WiFi @ 24 GHz, supports WPAWPA2 security mode
Support for AT remote upgrade and cloud OTA upgrade
Support STAAP/STA+AP working mode
Support for Smart Config function
HSPI, UART, 12C, 12S, IR Remote Control, PWM, GPIO deep sleep hold current is 10 uA, and turn off current is less than 5 uA
Wake up, connect, and transmit data packets within 2ms
Power consumption in standby mode is less than 1.0 mW (DTIM3)
Working temperature range: -40 ℃~125 ℃
Built in Tensilica L106 ultra low power 32-bit micro MCU, with main frequency support of 80 MHz and 160 MHz
Supports RTOS

Application
·Home Appliances Home Automation
·Smart sockets, smart lights
·Industrial wireless control
·Baby monitor
·IP camera
·Sensor network wearable electronic products
·Wireless location sensing device
·Security ID label
·Wireless positioning system beacon
Download materials and visit the official website: http://www.nodemcu.com

Package include:
1X development board
