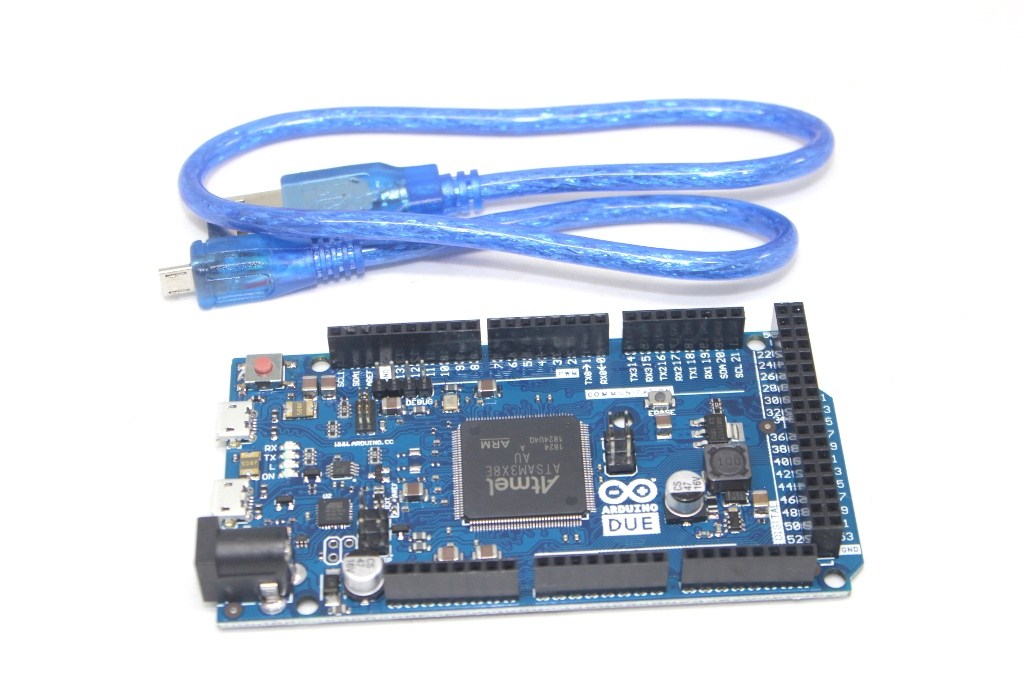

اردوينو ديو

IQD 59,000

من اقوى بوردات الاردوينو حيث يعمل على معالج بنواة 32 بت من عائلةARMيعمل بتردد 84 ميكا هرتزيحتوي على 54 منفذ دجتل و 12 منفذ انالوك و 4 منافذ سيريل ويحتوي على DAC , JTAG
undefined's image

الوصف

This is not the same as other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.
ARM core strengths
The use of 32 bit ARM core Due compared to the previous use of the other Iduino core 8 AVR more powerful.

The main differences are:
* 32 bits at a clock can process 32 bits of data.
* CPU clock frequency of 84Mhz
* 96 SRAM KBytes
* 512 Flash KBytes
* A DMA controller, can reduce the pressure on the CPU to do a lot of computing

Features:

Microcontroller: AT91SAM3X8E
Operating Voltage: 3.3V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-16V
Digital I/O Pins: 54 (of which 12 provide PWM output)
Analog Input Pins: 12
Analog Outputs Pins: 2 (DAC)
Total DC Output Current on all I/O lines: 130 mA
DC Current for 3.3V Pin: 800 mA
DC Current for 5V Pin: 800 mA
Flash Memory: 512 KB all available for the user applications
SRAM: 96 KB (two banks: 64KB and 32KB)
Clock Speed: 84 MHz
