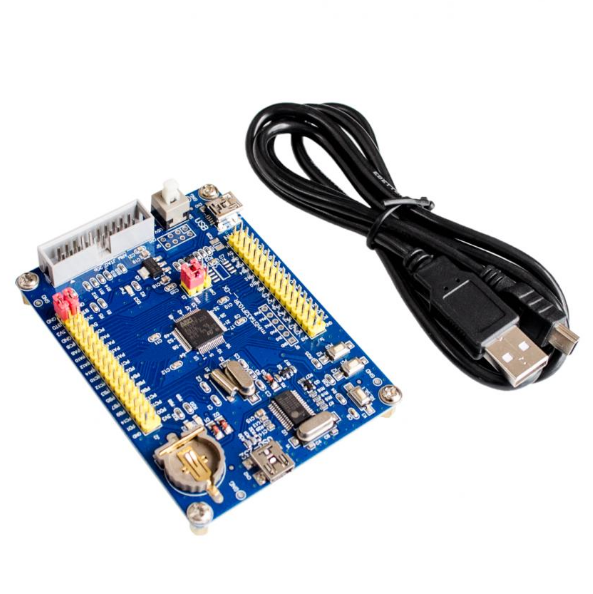

The ARM Cortex-M3 mini STM32 stm32F103RBT6 Cortex development board is an integrated circuit designed by STMicroelectronics. It is an embedded microcontroller from the STM32F1 series and comes in a 64-LQFP package. This product is currently active and is suitable for use in various applications.

The Cortex-M3 processor is a 32-bit single-core processor with a speed of 72MHz. It has various connectivity options such as CANbus, I²C, IrDA, LINbus, SPI, UART/USART, and USB. The product also comes with peripherals such as DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, and WDT.

Type Description

Category Integrated Circuits (ICs)

Embedded Microcontrollers

Mfr STMicroelectronics

Series STM32F1

Package Tray

Product Status Active

Digi-Key Programmable Not Verified

Core Processor ARM® Cortex®-M3

Core Size 32-Bit Single-Core

Speed 72MHz

Connectivity CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB

Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT

Number of I/O 51

Program Memory Size 128KB (128K x 8)

Program Memory Type FLASH

EEPROM Size -

RAM Size 20K x 8

Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V

Data Converters A/D 16x12b

Oscillator Type Internal

Operating Temperature -40°C ~ 85°C (TA)

Mounting Type Surface Mount

Package / Case 64-LQFP

Base Product Number STM32F103
