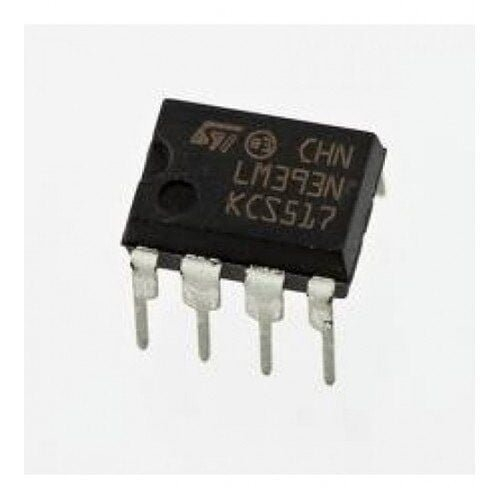

LM393 IC consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. The IC has a distinct advantage over conventional comparators in terms of operating efficiency. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The IC also offers a wide range of applications such as high operating speed, fan-in/fan-out capabilities, and low production cost, etc.

LM393 Features

• Maximum rating: up to 38 V

• ESD rating (HBM): 2k V

• Low input offset: 0.37 mV

• Low input bias current: 3.5 nA

• Low supply-current: 200 µA per comparator

• Faster response time of 1 µsec

• Extended temperature range for LM393

• Available in tiny 2 x 2mm WSON package

Application

• Vacuum Robot

• Single Phase Ups

• Server PSU

• Cordless Power Tool

• Wireless infrastructure Appliances

• Motor Drives

• Building Automation
