General description:

WS2812 is an intelligent control LED light source that the control circuit and RGB chips are integrated into a package of 5050 components.

It internal include an intelligent digital port data latch and signal reshaping amplification drive circuit.

Also, include a precision internal oscillator.

Also 12V voltage programmable constant current control part. Effectively ensuring the pixel point light colour height consistent.

The data transfer protocol uses a single NZR communication mode.

After the pixel power-on reset.

DIN port receive data from the controller

The first pixel collects initial 24bit data then sent to the internal data latch.

The other data reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port.

After transmission for each pixel the signal to reduce 24bit pixel adopt auto reshaping transmit technology thus making the pixel cascade number is not limited the signal transmission but only depend on the speed of signal transmission.

The control chip integrated into LED above becoming a more simple circuit, small volume, convenient installation.

Specifications:

• Chip:WS2812

• LED Color: RGB

• LED Type: 5050

• Board Color: Black

• LED Number: 64

• Voltage: 5V

• Size: Approx. 65mm x 65mm / 2.56″ x 2.56″

Features:

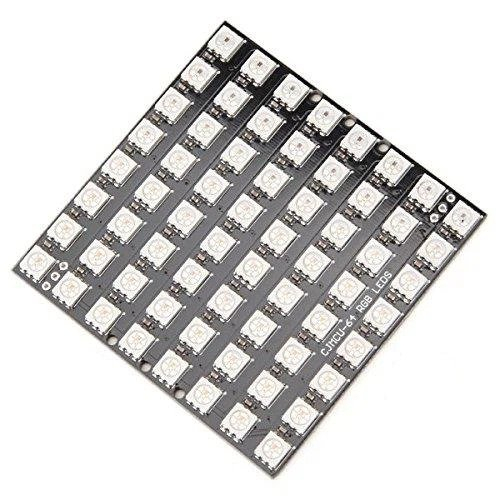

CJMCU-64 8×8 RGB LEDs WS2812 Module Board.
Cascading port transmission signal by a single line.
Built-in electric reset circuit and power lost reset circuit.
Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
Each pixel of the three primary colours can achieve a 256 brightness display, completed 16777216 colours full-colour display, and scan frequency not less than 400Hz/s.
When the refresh rate is 30fps, the cascade number is not less than 1024 points.
Send data at speeds of 800Kbps.
Widely use for LED decorative lighting, Indoor/outdoor LED video irregular screen.

Development  Resources: demo codes, schematics, datasheets, etc

How To Get Started with Programmable RGB LED Strip Lighting

Notes:

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitor.
