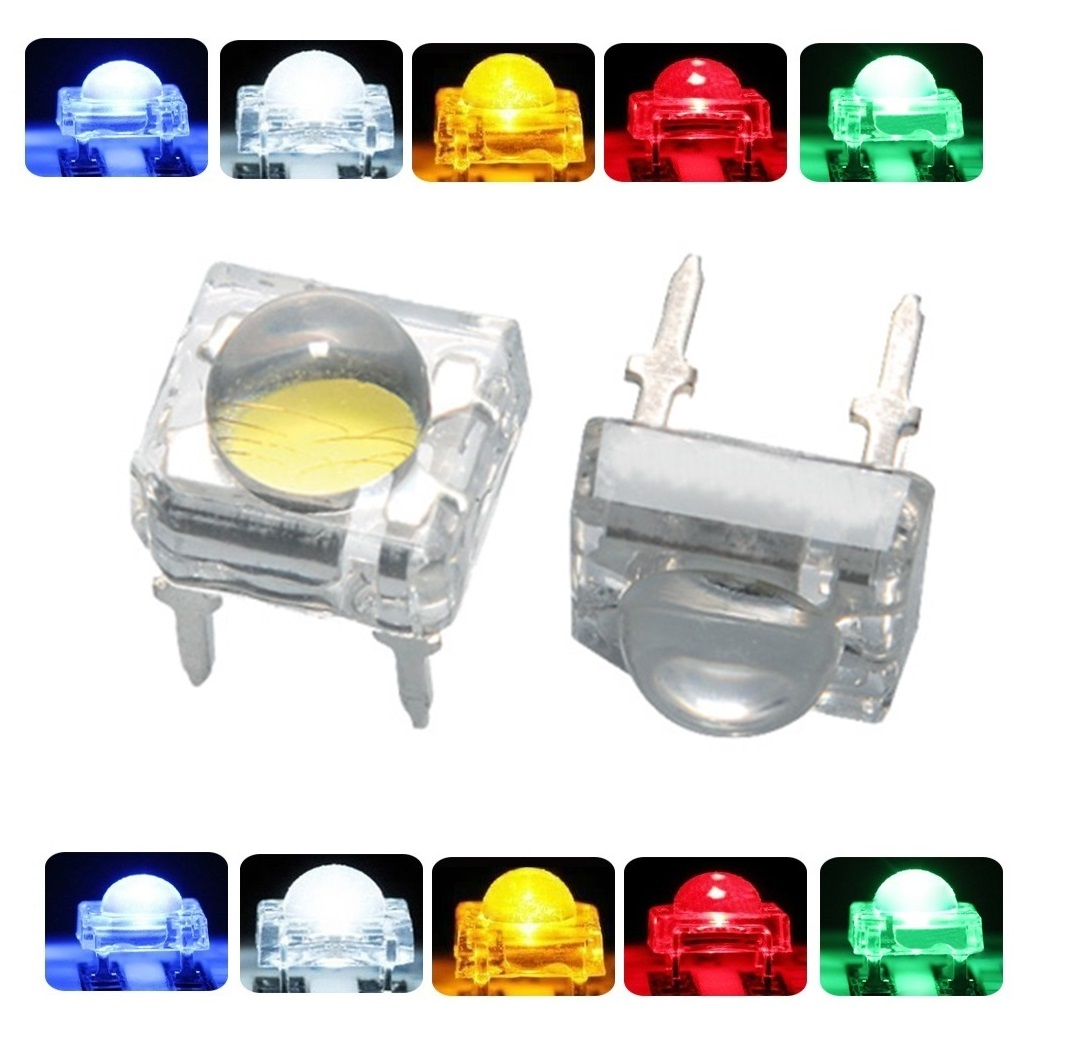

Type: Signal Diode, Piranha/ Superflux LED

Voltage: Variable between 2.0V & 3.2V (Refer to the table)

Current: 20mA

Light Color: White, Blue, Red, Green

Brightness Class: Super, Ultra, Extreme

Packaging: Through Hole (DIP)

Mount Style: Surface Mount

Lens Color: Clear

Size: 5mm (D)

Red

Specification: 5 mm
Voltage: 1.9--2.1V (The voltage can not very high Otherwise it will burn out )
Forward current: 20 mA ; Reverse voltage = 5.0 V
Luminance: 1000-1500mcd
Product life: About 50000-80000 hours (Suggestion current 20 mA)

White:

Specification: 5 mm
Voltage: 3.0 V -- 3.2 V
Brightness: 3500-4500 MCD
Current: 60-80 mA
NOTE:
The current proposal is not greater than 60 mA;
Voltage shall not be higher than 3.4V.
APPLICATION:

Green and Blue

pecification: 5 mm
Voltage: 3.2--3.4V (The voltage can not very high Otherwise it will burn out )
Forward current: 20 mA ; Reverse voltage = 5.0 V
Luminance: 2000-2500mcd
Product life: About 50000-80000 hours (Suggestion current 20 mA)

Yellow:

Specification: 5 mm
Voltage: 1.9--2.1V (The voltage can not very high Otherwise it will burn out )
Forward current: 20 mA ; Reverse voltage = 5.0 V
Luminance: 2000-2500mcd
Product life: About 50000-80000 hours (Suggestion current 20 mA)

APPLICATION: Lighting lamps and lanterns, lamp mould, small night lights
