JQX-60F 60 A High-Power Electromagnetic Relay

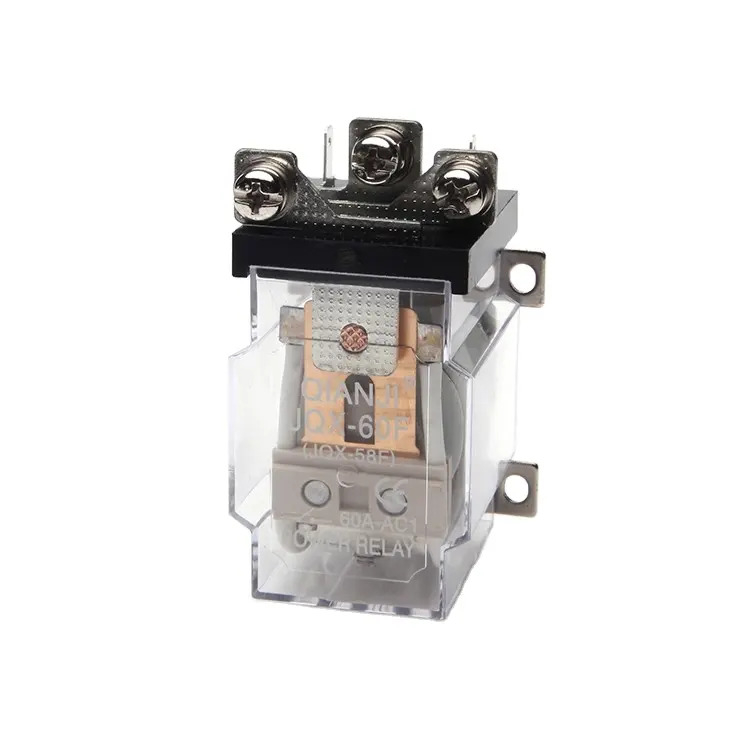

The JQX-60F is a single-pole, double-throw (SPDT / Form C) power relay designed to switch heavy AC or DC loads such as heating elements, motors, UPS inverters, battery-charging systems, EV chargers and industrial automation panels. Its clear polycarbonate cover lets you inspect contact wear, while large screw terminals (M4) make field wiring quick and secure. A robust moving-armature mechanism with silver-alloy contacts, arc-extinguishing chamber and Class B coil insulation give it long life and reliable operation under tough conditions.

Feature | Specification

Contact form | 1 Form C (SPDT)

Rated load | 60 A @ 250 VAC or 28 V DC (resistive)

Contact material | AgCdO / AgSnO₂ / silver-alloy options

Initial contact resistance | ≤ 100 mΩ (1 A 6 V DC)

Insulation resistance | ≥ 1000 MΩ @ 500 V DC

Dielectric strength | Coil ↔ contacts = 2500 VAC 1 minOpen contacts = 1200 VAC 1 min

Operate / release time | ≤ 25 ms / ≤ 15 ms

Mechanical life | ≥ 1 × 10⁵ operations

Electrical life (60 A resistive) | ≥ 5 × 10⁴ operations

Ambient temperature | –25 °C … +55 °C

Ambient humidity | 35 % – 85 % RH (non-condensing)

Coil insulation class | Class B (130 °C)

Dimensions (L × W × H) | 78 × 46 × 46 mm

Weight | ≈ 160 g

Terminals / mounting | M4 screw / panel mount

Parameter | 12 V DC coil | 24 V DC coil | 220 V AC coil (50/60 Hz)

Nominal voltage (Un) | 12 V DC | 24 V DC | 220 V AC

Coil resistance (±10 %) | 71.8 Ω | 288 Ω | 1.97 kΩ

Nominal current | 167 mA | 83 mA | 39 mA

Coil power / VA | ≈ 2.0 W | ≈ 2.0 W | 8.6 – 10 VA

Pick-up voltage (max) | ≤ 9 V (75 % Un) | ≤ 18 V (75 % Un) | ≤ 176 V AC (80 % Un)

Drop-out voltage (min) | ≥ 1.2 V (10 % Un) | ≥ 2.4 V (10 % Un) | ≥ 66 V AC (30 % Un)

Max. over-voltage | 110 % Un | 110 % Un | 110 % Un

Operate / release time | ≤ 25 ms / ≤ 15 ms | ≤ 25 ms / ≤ 15 ms | ≤ 25 ms / ≤ 15 ms

Example part number | JQX-60F-1Z-H-12 V DC | JQX-60F-1Z-H-24 V DC | JQX-60F-1Z-H-220 V AC

Key application notes

1. Inrush capacity – Although rated 60 A resistive, inductive or tungsten loads draw higher inrush. Derate or use an RC / MOV snubber for contact protection.

2. Coil drive – Keep coil supply within 85–110 % Un for DC types (80–110 % for AC) to maximise life and minimise heating.

3. Back-EMF – Add a diode (DC coils) or RC network (AC coils) across the coil when driven by semiconductor outputs to protect control electronics.

4. Mounting orientation – Vertical mounting with terminals down aids arc dissipation and prevents debris falling into the mechanism.

5. Thermal design – Allow at least 10 mm free air on all sides or fit to a metal chassis to conduct heat away when switching near the 60 A limit continuously.

This information should let you choose the correct JQX-60F variant and integrate it safely in your high-current switching designs.
