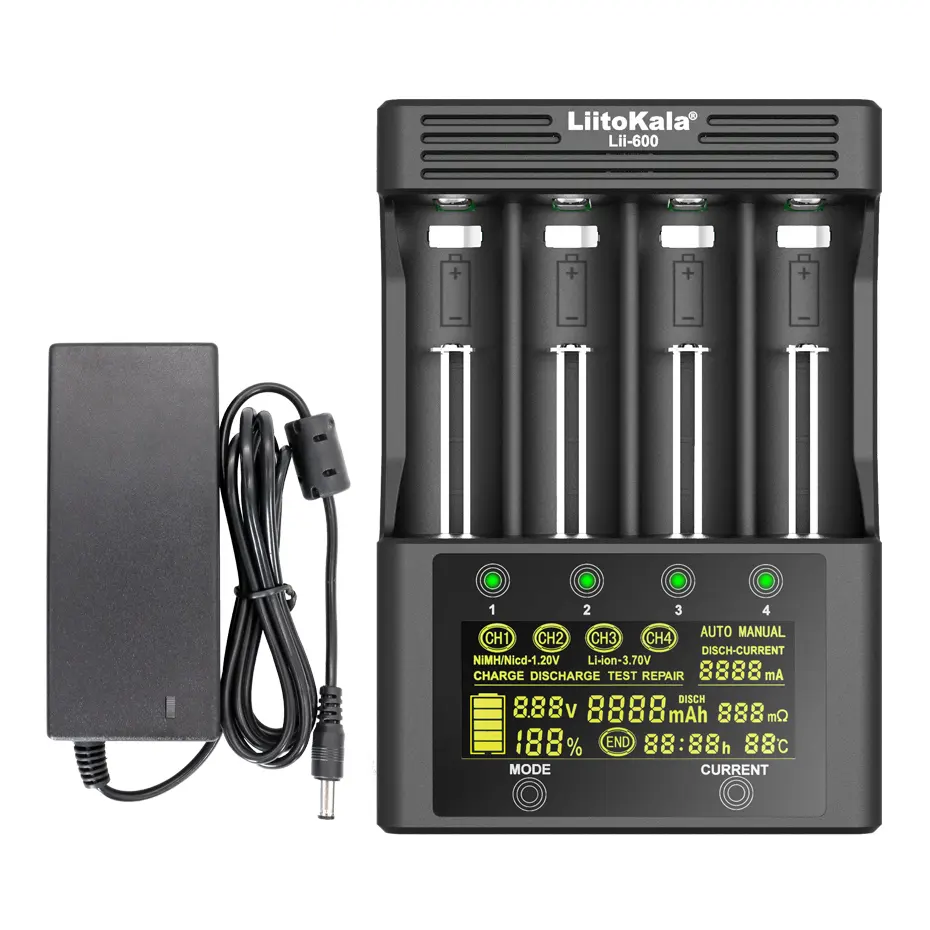

The LiitoKala Lii-600 is a versatile 4-slot smart battery charger that accommodates a variety of battery types, including Li-ion 3.7V and NiMH/Cd 1.2V models, making it compatible with popular battery sizes like 18650, 26650, AA, AAA, and more. This charger is equipped with a touch control function and has both automatic and manual modes, offering a flexible, user-friendly charging experience.

Specifications

• Brand: LiitoKala

• Model: Lii-600

• Input Power: DC 12V/5A

• Output Voltage: DC 4.2V (for Li-ion), 1.48V (for NiMH/Cd)

• Output Current: 0.25A - 3A per slot

• Discharge Current: 250mA, 500mA, 750mA

• Protection: Overcharge, over-discharge, short circuit, temperature protection

• Dimensions: 165 x 115 x 40 mm

• Weight: 307g

Compatible Batteries

• Battery Type: Li-ion (3.7V), NiMH/Cd (1.2V)

• Battery Sizes: 26650, 18650, 14500, AA, AAA, and more

Features

1. Touch Control: Convenient touch interface for ease of operation.

2. Independent Slots: Each of the four slots operates independently, allowing different settings per slot.

3. Dual Modes: Automatic (AUTO) mode for optimized charging and MANUAL mode for customized settings.

4. Variable Charging Current: Select from various current options ranging from 250mA to 3000mA.

5. Discharge Modes: Offers three discharge current levels - 250mA, 500mA, and 750mA.

6. LCD Display: A comprehensive LCD screen displays essential parameters, including battery type, charging mode, channel status, and battery details such as voltage, capacity, and temperature.

7. Multiple Working Modes:

   • CHARGE Mode: Select different charging currents and check charging capacity on each slot.

   • DISCHARGE Mode: Monitor and manage discharge current and capacity independently per slot.

   • TEST Mode: Conducts a three-step process to evaluate battery capacity - charging, discharging, and recharging.

   • REPAIR Mode: Refreshes batteries to extend their performance life.

8. Advanced Protection: Safeguards include overcharge, discharge, short circuit, and temperature protection, as well as recognition for damaged or reverse-connected batteries.

Applications
This smart charger is ideal for enthusiasts, hobbyists, and professionals who frequently use rechargeable batteries. With its detailed monitoring and customizable options, it is especially suitable for use with high-drain devices.
