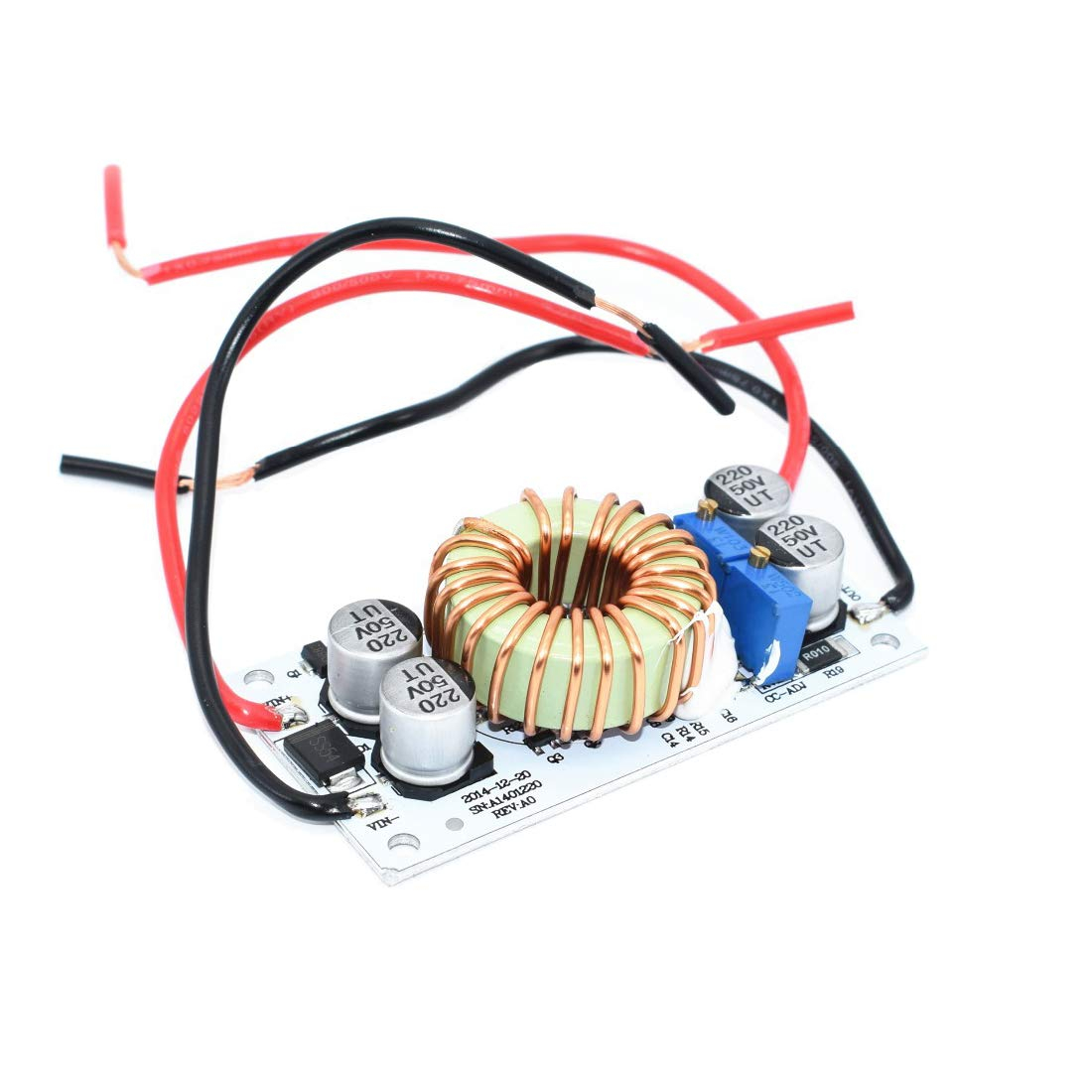

DC-DC Boost Converter Constant Current Mobile Power Supply 10A 250W LED Driver

Description:

• Module name :250W boost constant current module

• Module properties: non-isolated step-up module (BOOST)

• Input voltage: DC 8.5V-48V

• Input current: 10A (MAX) exceeds 8A please enhance heat dissipation

• Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)

• Output voltage: 10-50V continuously adjustable

• Constant range: 0.2-8A

• Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

• Operating frequency: 150KHz

• Conversion efficiency: up to 96%

• Overcurrent protection: Yes

• Input reverse polarity protection: Yes

• Installation: 4 nos. 3mm screw holes

• Connection method: Connection Output

• Module size: Length 70mm width 36mm height 13mm

• Single module: 65 g

Applications:

• DIY power supply, 12V input can give adjustable output of 12-50V.

• The power supply for your electronic device, to provide voltage according to your system.

• Portable car power supply for your laptop, PDA or a variety of digital products supply.

• DIY mobile notebook power supply

• Solar panel regulator.

• To charge battery, rechargeable lithium batteries.

• Driving high-power LED lights
