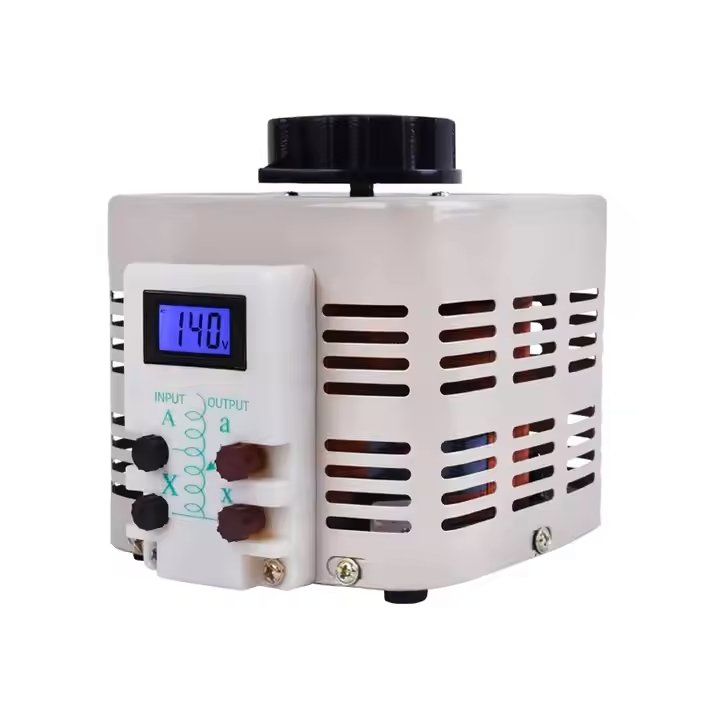

The voltage regulator is an autotransformer with a continuously adjustable turns ratio. By turning the handwheel spindle and brush holder, the brushes slide along the polished surface of the coil, allowing the turns ratio to change and the output voltage to be smoothly adjusted from zero to the maximum voltage.

Product Performance

• Working Frequency: 50/60Hz

• Efficiency: 95%

• Waveform Distortion: None

• Temperature Rise: Within acceptable limits

• Electric Strength: 2000V/min

• Insulation Resistance:

  • Single-phase > 5MΩ

  • Three-phase > 2MΩ

Construction

1. Unit Structure:

   • For regulators up to 0.5KVA, the unit structure consists of a coil with a polished surface, a brush contact under spring pressure, and a handwheel for adjustment. It features a protective hood and is suitable for tabletop use.

2. Single Phase Assembly:

   • Larger single-phase voltage regulators are assembled from multiple units of the same specification. Coils are connected in parallel at the input and to a balanced reactor at the output to ensure equal current distribution.

3. Brush Structure:

   • graphite brushes with a metal frame for heat dissipation.

Applications

The Series Voltage Regulators are ideal for:

• Voltage regulation, temperature control, dimming, and power control.

• Industries such as chemical, metallurgical, electromechanical, light industry, and scientific experiments.

• Household appliances and utilities.

Environmental Conditions

• Temperature Range: -5℃ to +40℃

• Altitude: ≤ 1000m

• Relative Humidity: Maximum monthly average of 90% at 25℃

• Installation: Indoor, free from gases, vapors, dust, and aggressive media.

Specifications

ModelCapacity (KVA)Dimensions (WDH)Weight (kg)TDGC2-0.50.5140 × 130 × 130 mm4
