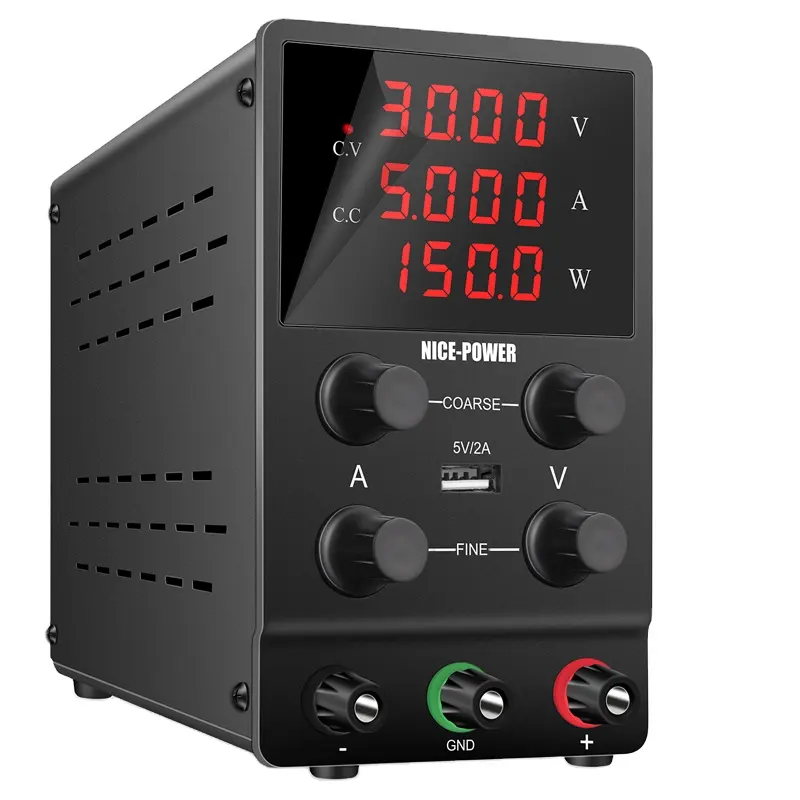

SPS305 30V 5A Black LED Digital Adjustable Variable Laboratory Bench Power Supply Variable Voltage Regulator

1.Have complete operating protection function

2.Highly efficient, low ripple, small volume, light weight

3.Double display voltage, current, and high precision

4.Voltage stabilization, current limiting, simple operation

5.Dual voltage input and convenient choice

6.Temperature control fan heat dissipation, low noise

7.Double potentiometer more precise adjustment

More Parameters

Input voltage:AC 220V 50Hz / AC 110V 60Hz

Output voltage:0 ~ 30V

Output current:0 ~ 5A

Voltage resolution:0.01V

Current resolution:0.001A

Output Voltage ranges from 0 to 30V with continuous adjustment .

Output Current ranges from 0 to 5A with continuous adjustment .

Voltage regulation : Line regulation<5mV. Load regulation<5mV.

Recovery time<500us(50% Load change, minimum load 0.5A)

Ripple & Noise<5m Vrms, 100m Vp-p

Temperature coefficient<100p pm/C.

Output current ranges from 0 to rating current with continuous adjustment

Current regulation line regulation<3mA. load regulation<3mA.

Indicator Meter

Voltage display precision: +-(0.5% of rdg + 2 digits).

Current display precision: +-(0.5% of rdg + 2 digits).

Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.

Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
