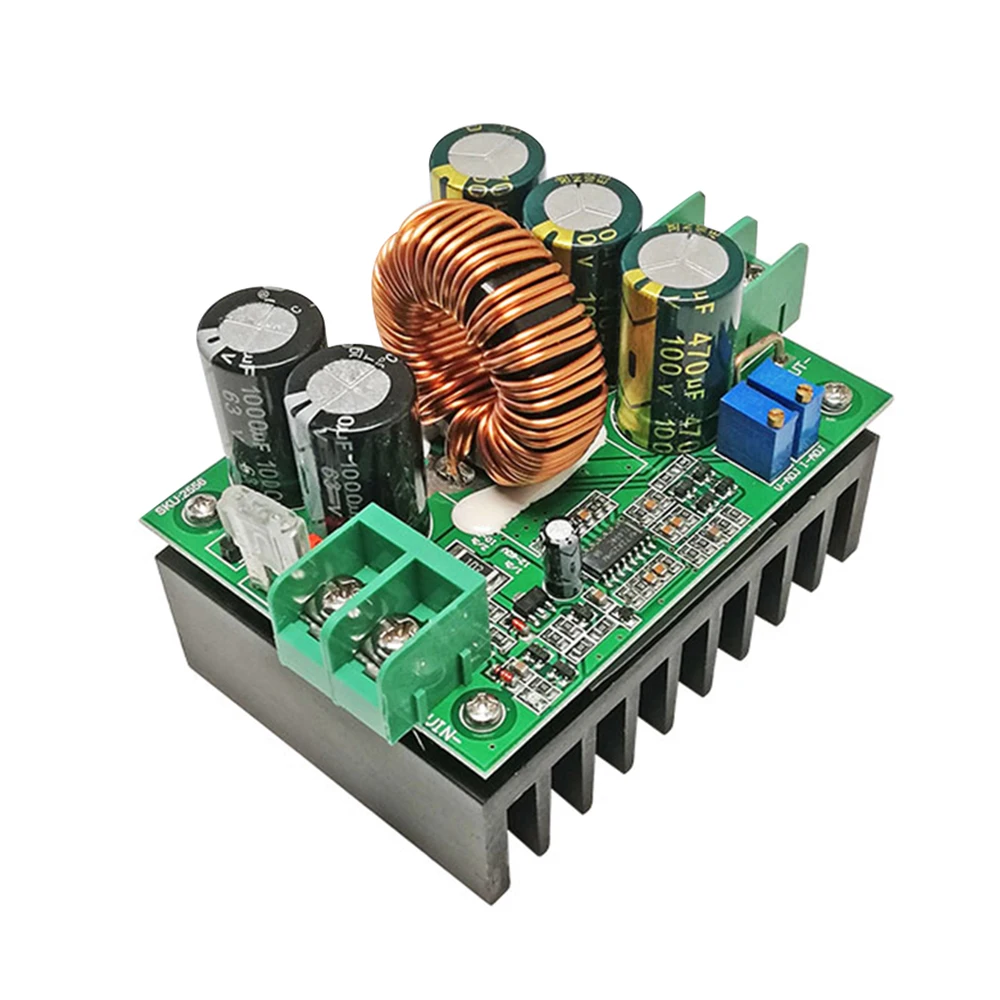

DC-DC Booster Module 1200W 20A - Constant Voltage and Current Adjustable Power Supply for Electric Vehicles and Solar Charging

Features:

1. Stable Design: Inductive vertical design minimizes interference and enhances stability. It includes a replaceable fuse and double protection for reliable operation. The overall design is well-structured for optimal performance.

2. High-Quality Components: Features a 27mm large iron silicon aluminum magnetic ring, thickened copper enameled wire, and a thickened aluminum heat sink, ensuring lower heat and more stable performance.

3. Efficiency: Offers high efficiency with lower heat generation, making it a cost-effective solution for high-power applications.

4. Low Ripple Output: Equipped with two 470uF/100V electrolytic capacitors for input and three 470uF/100V low-resistance electrolytic capacitors for output, resulting in minimal output ripple.

5. Wide Application: Ideal for vehicle power supplies, solar panel voltage regulation, battery charging (including lithium batteries), and driving high-power LED lights.

Specifications:

• Input Current: 20A

• Input Voltage: DC 10-36V

• Output Voltage: DC 12-80V (Continuously Adjustable)

• Output Current: Maximum 20A (Ensure enhanced heat dissipation for currents over 18A)

• Constant Current Range: Up to 20A

• Operating Frequency: 150KHz

• Conversion Efficiency: Up to 95%

• Minimum Differential Pressure: 3V

• Potentiometer Adjustment: Clockwise to increase, counterclockwise to decrease

• Wiring: Terminal block

• Power Protection: Overcurrent protection, double short-circuit protection (with 20A input fuse), and output anti-reverse flooding protection.

Instructions for Use:

1. Adjust Output Voltage: Use the CV potentiometer to set the output voltage to the desired level, based on the battery or LED requirements.

2. Adjust Output Current: Set the CC potentiometer counterclockwise to the minimum current, then connect the LED or battery and adjust to the required current. For accurate battery charging, adjust after discharging the battery.

Applications:

1. DIY Regulated Power Supply: Convert 12V input to an adjustable 12-80V output.

2. Electronic Equipment Power Supply: Customize the output to match system voltage requirements.

3. Vehicle Power Supply: Power laptops or various digital devices on the go.

4. Portable Laptop Power Supply: Use with a high-capacity 12V lithium battery pack to power laptops anywhere.

5. Solar Panel Voltage Stabilization.

6. Battery Charging: Suitable for charging batteries, including lithium batteries.

7. High-Power LED Driving: Efficiently powers high-power LED lights.

Note: The product does not have reverse protection; if needed, please add diodes at the input side.
