Feature:

1. Adjustable, output voltage can be adjusted by adjusting the potentiometer.

2. Made of high-quality materials, durable and practical, with conversion efficiency up to 94% (MAX).

3. Simple application, easy operation, no welding terminal.

4. With protection function, short circuit protection, reverse protection.

5. Wide range of applications, suitable for power tools, electronic fields, industrial automation, communication equipment, etc.

Product parameters:

Input voltage: DC7V-60V (limited to 60V, please set aside)

Output voltage: DC1.25-35V adjustable (default output 12V)

Conversion efficiency: 94% (MAX) (efficiency is related to input, output voltage difference, output current)

Protection: short circuit protection, reverse protection (reverse no burning plate)

Output current: Normal 10A,15A(MAX)

Output power: natural heat dissipation 100W, enhanced heat dissipation 120W, such as long working hours, please pay attention to the left edge and make it hot.

Operating temperature: -10℃ to +85℃

Operating frequency: 180KHz

Product size: about 70mm39mm30mm

Wiring mode: The terminal does not need to be welded. IN is the input and OUT is the output

Special note: The greater the pressure difference between input and output of the module, the more severe the heating, the lower the efficiency, and the worse the load capacity.

Package included:

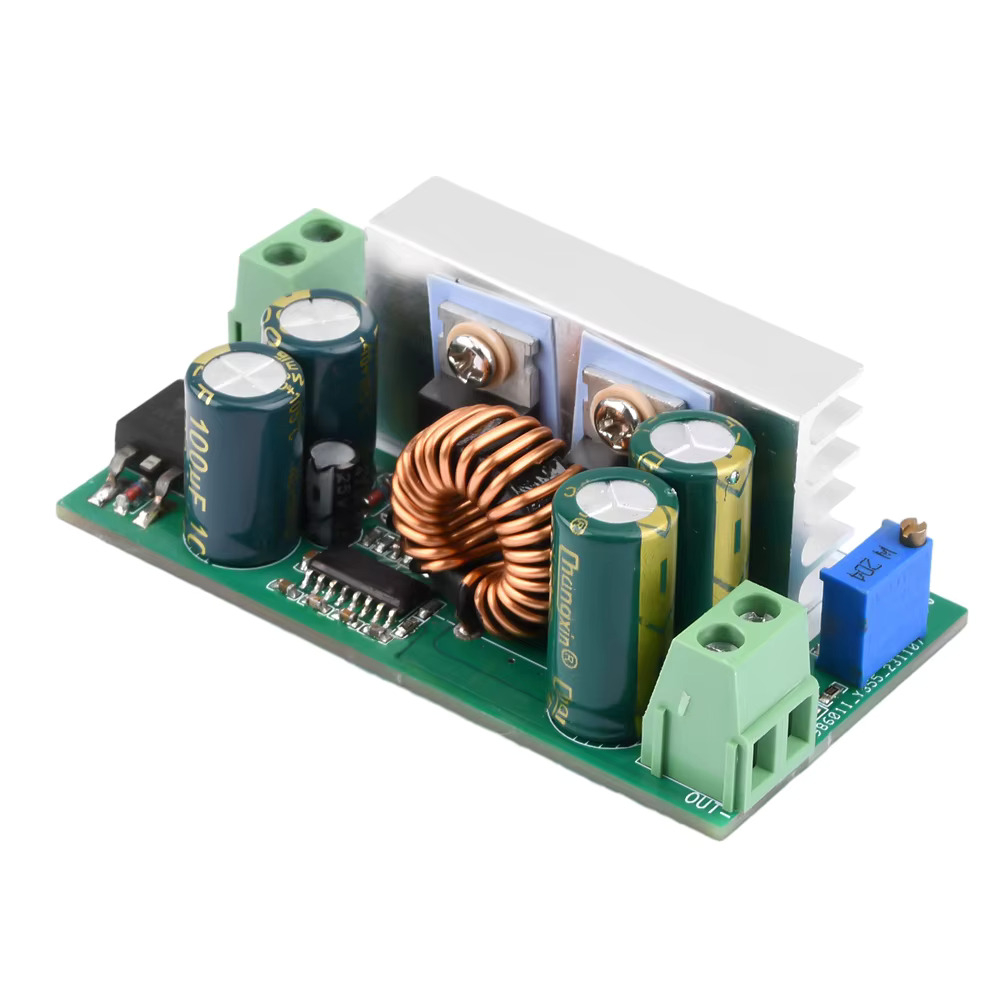

1 x Buck Converter 100W 15A DC-DC 7V-60V to 1.25-35V 5V 12V 24V Adjustable Buck Converter Step Down Power Supply Module

Note:

1. This power module belongs to DC step-down switching power supply, the input voltage should always be greater than the output voltage and at least 1V pressure difference, input power = output power + loss (energy conservation principle)

2. The marked current is the maximum current under specific conditions (measured 12 down 5V) the actual output current is not fixed, and is related to the input and output pressure difference and temperature.
