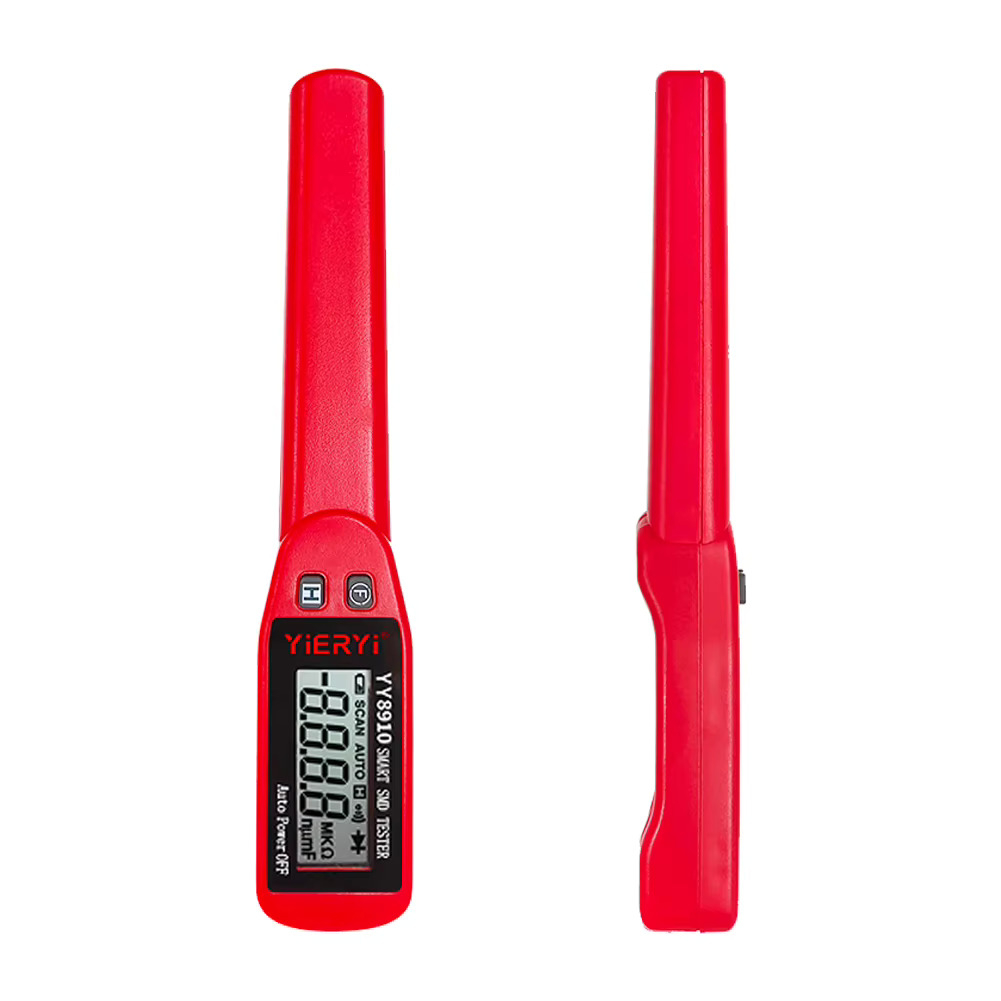

Product details of Yieryi Smart SMD Tester Electrical Multimeter Resistance Capacitance Continuity Diode Test Meter SMD Component Tester

• Small size and lightweight, handheld and portable test tool

• Used to measure SMD, such as Chip resistor, Chip capacitor and Chip diode devices

• Auto scanning, identifies resistor, capacitor and diode automatically

• Continuity testing. When the resistance is less than 30Ω, it will sound

• Specially designed for SMD components, able to identify components such as resistors, capacitors diodes, etc

• Special gold-plated chuckSpecial pointed gold-plated chuck for intelligent recognition of measured object stage, on/off, etc

Specifications:

Display: 3000 count LCD display

Power supplied by: 1 * 3V CR2032 battery

Resistance measurement:

Auto scanning range: 300.0Ω to 3.000MΩ

Manual measuring range: 300.0Ω to 30.00MΩ

Capacitance measurement:

Auto scanning range: 3.000nF to 300.0μF

Manual measuring range: 3.000nF to 30.00mF

Package contents:

1 * SMD tester

2 * Backup test pins

1 * User manual
