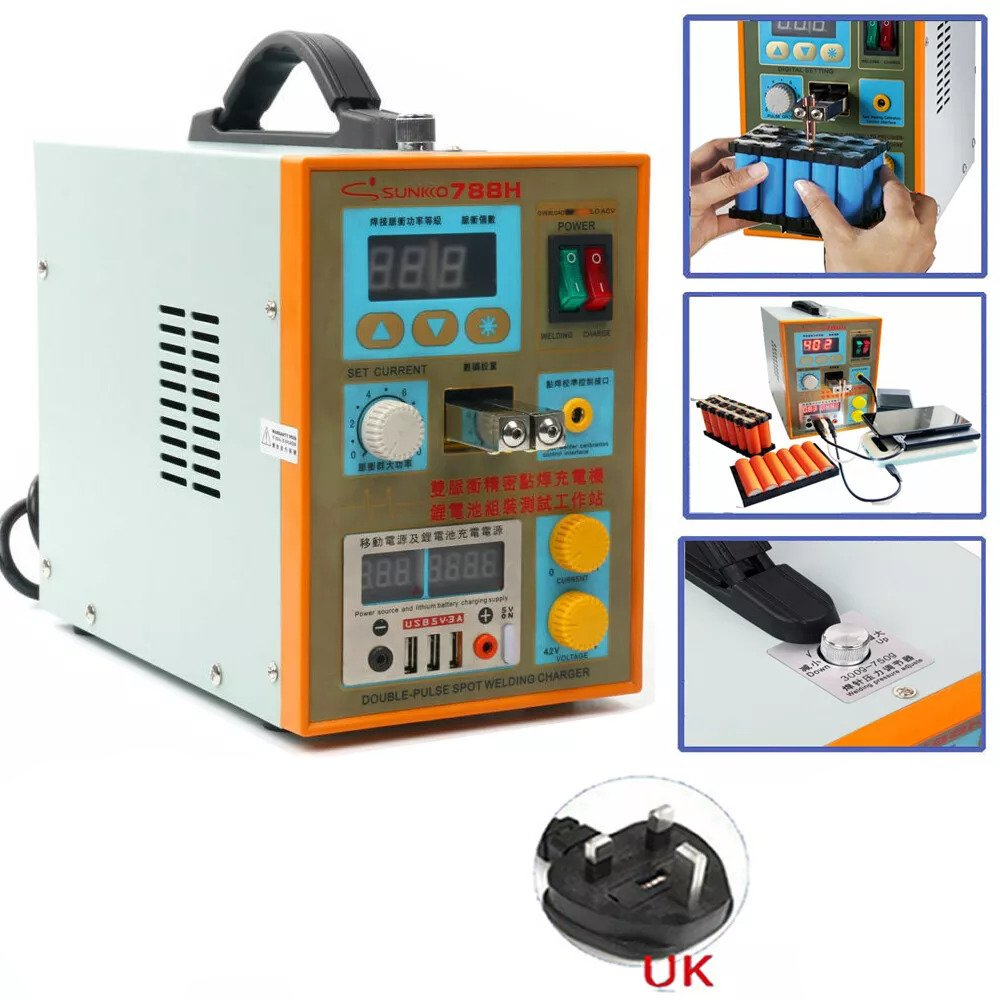

788H-USB is based on 788H to design the battery point welding machine for the mobile power in assembling and producing.
It's measuring and checking included battery charge, charging current value and circuit board with charging protection function in mobile power.
788H-USB can be used in the battery of mobile phone and tablet computer after repairing for charging test and aging test.
788H-USB contains 3 standard 5-volt USB outlets and the largest output electric current is 3A.

It is suitable for mobile phone and tablet computer and mobile power which is with 2~3A quick charging function

Test the power bank charge charge current:
1.788U tests 1 mobile power. Charging voltage is 5.01V and charging current is 0.79A as shown in the picture.
2.788U tests 2 mobile powers in the same time. Charging voltage is 5.02V and charging current is 0.18A as shown in the picture.
3. 788U has 3 USB outlets and tests 3 mobile powers in the same time. Charging voltage is 4.48V and charging current is 2A as shown in the picture.
4. 788U is for mobile power assembling welding and charging.As shown in the picture the machine test the mobile power that the charging voltage is 3.35V and charging current is 2.07A.

Features:
This spot welder is contains preciston pulse spot welder , lthium battery test and charge three in one;
Micro-computer control up to level 199(991;992),precision parameter setting;
There have one or two pulse to choose to faster welding;
It have two current setting to fast set welding current.The maximum up to 16 pulse.Suit for welding thicker material.
The charging part has 4.2V-36V to continuously regulated,it satisfied for most single and assembled battery to charging and testing.
That have 3 microUSB,special for power bank、tablets and smartphones charge.
The welder have pedal welding trigger switch system,improve the accuracy and quality of welding;
Unique professional welding pressure adjuster,that's convenient to weld different work piece;
High precision 4 bit +3 bit voltage current indicator.

Specification:
Brand: Sunkko
Model: 788H
Voltage input:AC110V/220V
Primary current:2A-15A
Charging Voltage:   4.2 - 36 V (Adjustable)
Charging Current:   0 - 3 A (Adjustable)
Power: 1.5KW
Soldering Current: 50A800A (Related Pulse Range 1ms19ms)
Soldering Metal Length: 0.1~0.2mm
Numerical Control Charger
Dimensions: 140X245X200 mm
Weight: 6kg

Package Included:
1 x788H-USB Battery Spot Welder
1 x Foot Pedal
4 x Welding Pin
1 x Hex Wrench
2 x Fuse
1 x Specialized Wrench
2x Charging wire
100PCS Testing nickel plates
1X User manual

Spot Welder Foot Pedal Switch
Specifications:
1.100% Brand new and high quality
2.It is a good replacement for older foot pedal .
3.Brand Name:SUNKKO
4. Weight:0.3kg
5.Max. Welding Thickness:0.3mm
6.Dimensions:12cm x 8cm x 4cm
Type: Foot Pedal Switch
