Feature:

1. 2 IN 1 MULTIMETER: Voltage and frequency can be displayed with different color on the LED screen, red for voltage, green for frequency, which is clear and convenient to read
2. WIDE MEASURING RANGE: Digital AC voltmeter frequency meter can measure voltage of AC 50~500V, frequency 10.0-99.9hz, accuracy is 1% ± 2 digits, with high working efficiency of 2 times/s measuring speed
3. NO EXTRA INDIVIDUAL POWER SUPPLY: Voltage frequency meter can directly connect two wires to the tested voltage to measure voltage and frequency without power supply
4. SUPER SMALL SIZE: With 72x72mm panel, 68x68MM hole size. This voltage frequency meter can be installed on anywhere flexibly, compact and convenient
5. CLEAR AND INTUITIVE DISPLAY: Voltage frequency tester uses a 0.56in LED font size to display the distribution of data in a concise form, so that readers can quickly understand the data

Specification:

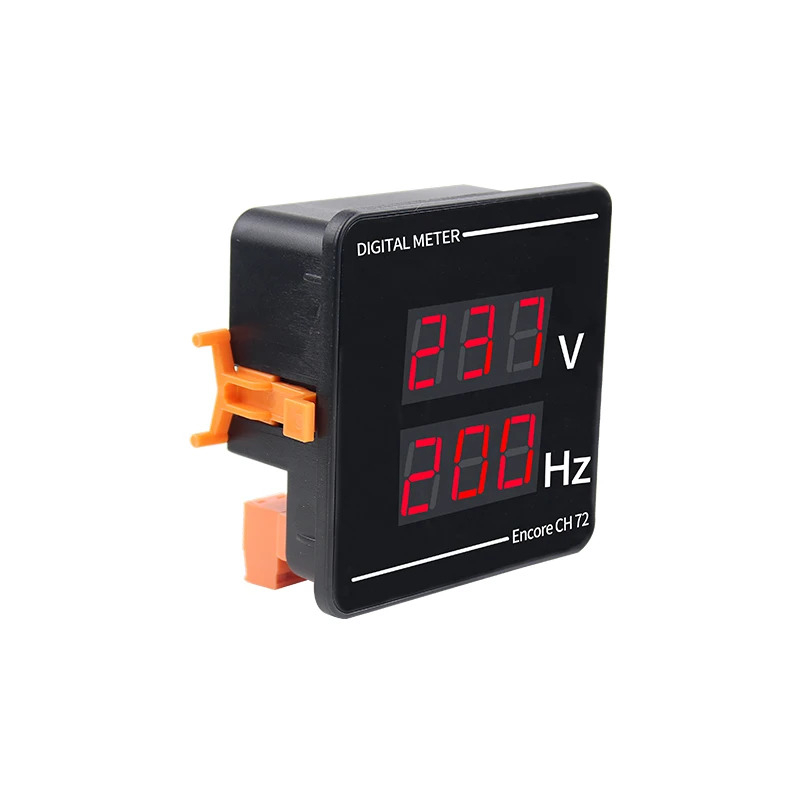

Item Type: Digital Frequency Meter
Model: For CH 72 VHz
Measurement Accuracy: 1% (±2 digits)
Opening Size: Approx. 68 x 68mm / 2.68 x 2.68in(embedded installation)
Panel Size: Approx. 72 x 72mm / 2.83 x 2.83in
Digit Color: Red
Measurement Range: AC50-500V 10.0-99.9Hz
Display Method: LED
LED Font Size: Approx. 14.2mm / 0.56in

Package List:

1 x Digital AC Voltmeter Frequency Meter
2 x Installation Accessories

Note:

This meter is only suitable for pure AC 50-61Hz mains power, and cannot be used to measure square waveform, inverter output, or modified sine waveform sinusoidal circuits, otherwise the meter will be permanently damaged!
