Overview

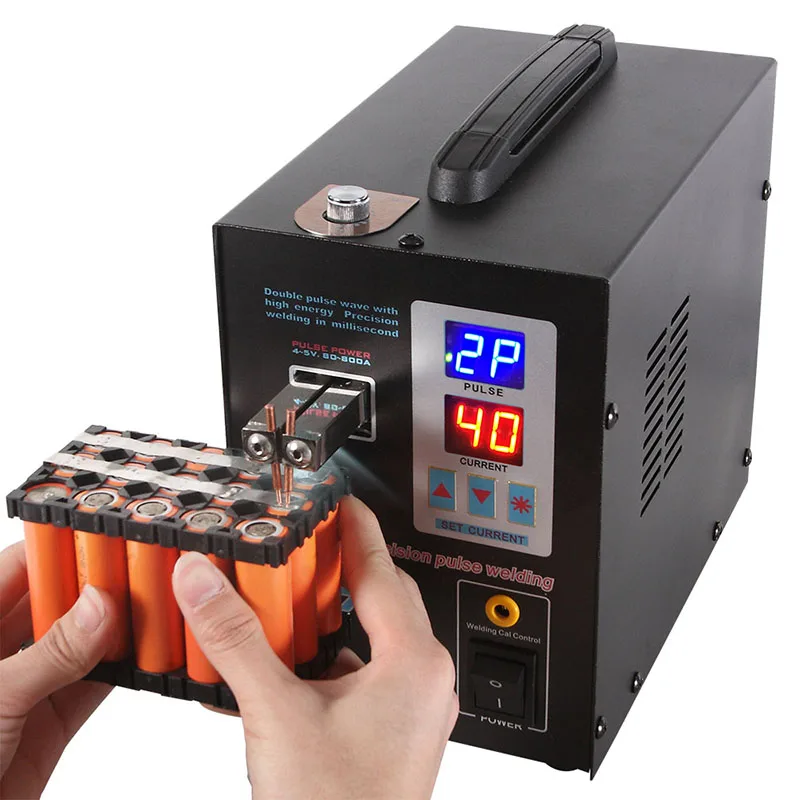

The SUNKKO 737G is a dual-pulse, transformer-type battery spot welder designed for building lithium packs (e.g., 18650/14500) with clean, repeatable welds. A fixed welding head with built-in LED illumination makes positioning easy, while dual digital readouts let you set and monitor pulse count and welding current precisely. The machine supports single- or double-pulse operation to tune heat input across different nickel strips and cell tabs, and includes a foot pedal for comfortable, consistent production work. It’s suitable for welding nickel-plated steel (0.05–0.20 mm) and pure nickel (0.05–0.15 mm)—ideal for hobby, repair, and small-batch pack assembly.

Key Features

• Dual-pulse welding (1P/2P) with 99 current levels for precise heat control; single-pulse time 5 ms.

• Dual digital displays for pulse and current, plus LED work light at the welding head.

• Adjustable welding pressure via top knob; typical range 200–700 g to match strip thickness.

• Fixed head operation with included foot pedal for better ergonomics and consistent timing.

• Designed for nickel and nickel-plated steels (not for copper or aluminum).

Technical Specifications

• Input voltage: AC 110 V ± 10% (model variant); EU variant available 220–240 V.

• Rated power: ~1.5 kW (typical listing); instantaneous output up to 2.88 kW.

• Welding current range: 50–800 A (stepless).

• Pulse modes: 1P / 2P; current levels: 99; single-pulse time: 5 ms.

• Supported materials & thickness:

  • Nickel-plated steel: 0.05–0.20 mm

  • Pure nickel: 0.05–0.15 mm

• Adjustable welding pressure: 200–700 g.

• Machine size: 140 × 245 × 200 mm.

• Net / gross weight: 4.3 kg / 5.5 kg; package size: 215 × 370 × 310 mm.

What’s in the Box

• Main machine (737G)

• Copper welding rods (2 pairs)

• 6-section battery fixture

• Foot pedal

• Fuses 30 A × 2

• Hex wrench

• Sample nickel-plated strips (0.15 × 5 × 100 mm × 30 pcs; 0.1 × 4 × 100 mm × 30 pcs)

Usage & Safety Notes

• Allow ~3 seconds between welds to protect internal components.

• Do not use with external voltage transformers; use the correct voltage model.

• 110 V version typically requires a >40 A circuit breaker to avoid nuisance trips.

  • Not suitable for copper or aluminum tabs. Use nickel or nickel-plated steel only.
