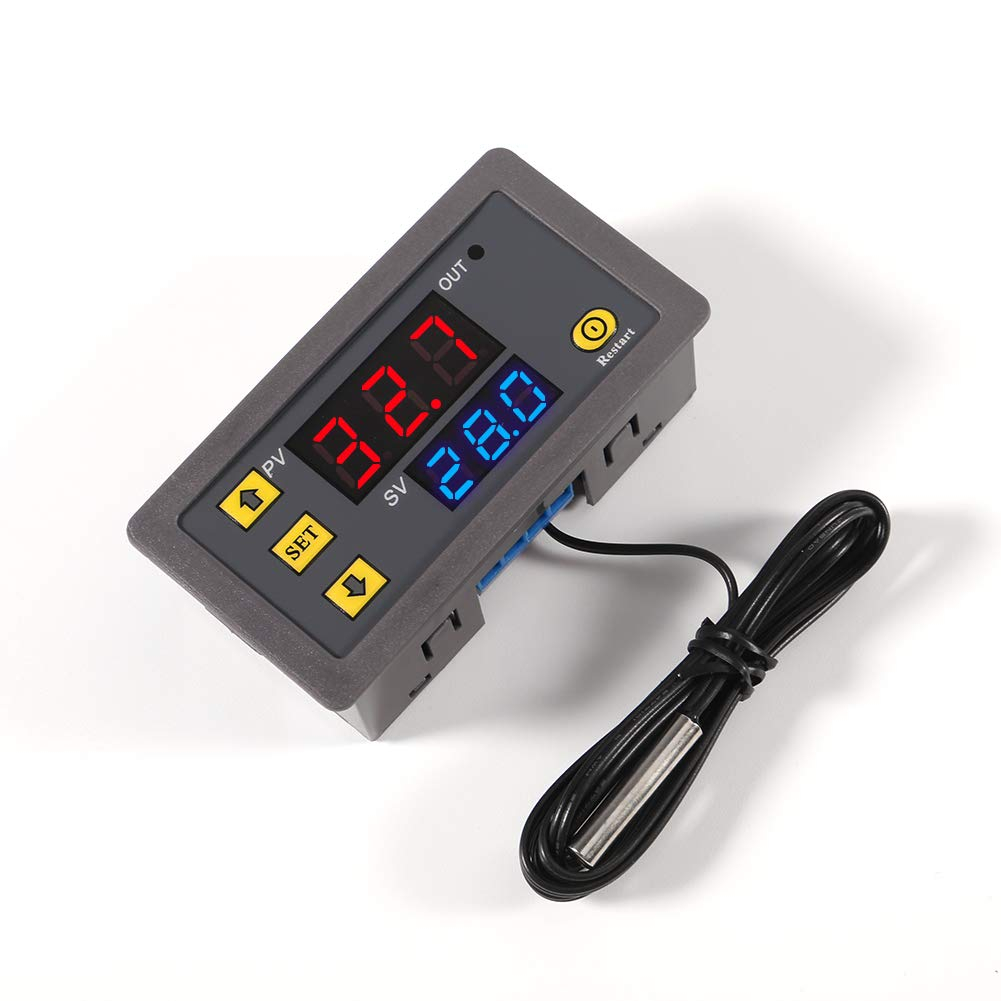

W3230 Description:

• Mini temperature controller.

• With clear LED display for better readability.

• Wide temperature measuring range.

• Heating or cooling control.

• All parameters setting can be saved after short circuit.

• Relay output.

• High Control precision 0.1 centigrade

• Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

Specifications:

• Power Supply:12V DC/24V DC/110V-220V AC

• Temperature Control Range:-55°-120°

• Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)

• Color of Displaying: red/blue

• Measurement accuracy: ±0.1°C

• Control accuracy: 0.1°C

• Sensor: NTC10K Waterproof sensor

• Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V

• Environmental requirements: -10-60°C , humidity 20%-85%RH

• Dimension:79mm 43mm26mm

• Cutting Size:73mm*39mm

• Sensor wire: 1 meter
