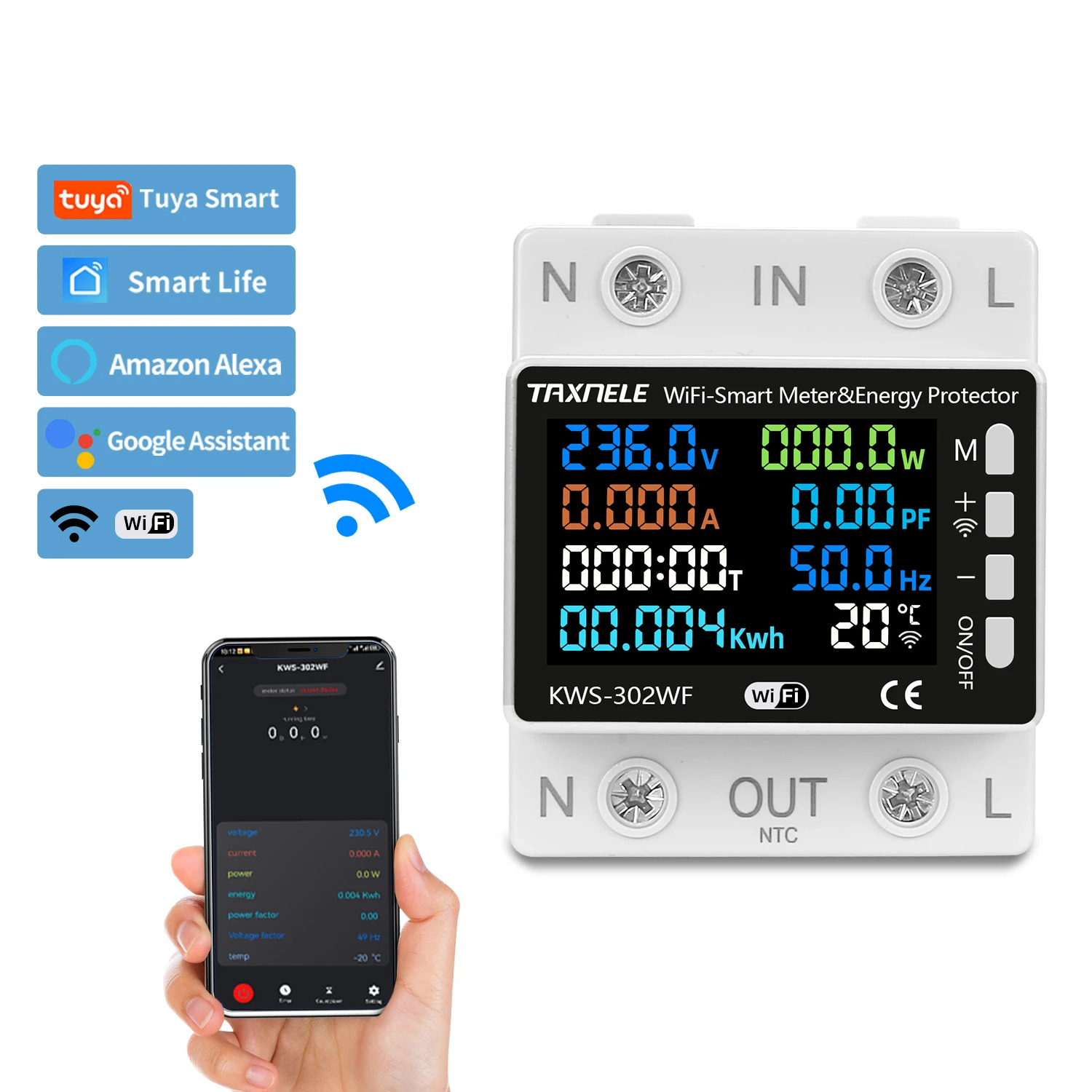

8in1 Parameter Display In One Colourful DIsplay

Voltage, Current, Power, Timing, Electric Energy, Temperature, Frequency and Power Factor

APP Function (Only KWS-302WF Support):

Phone Remote APP Control: Download SmartLife APP or Tuya intelligent APP connection, realize WIFI network cloud remote intelligent control. Where there is signal, you can control the device whenever and wherever you want, unlimited distance.

Power Failure Protecting Function (KWS-302WF and KWS-302L Support):

Support over-voltage, under-voltage, over-current, over-power, over-temperature, Timed Power Off protections setting, and screen hibernation setting.

Specifications:
Name: 8in1 Energy Meter
Material: ABS+PC

Voltage measurement ranges: 100-290V

Current measurement ranges: 0-63A

Power measurement ranges: 0-17KW

Timing measurement ranges: 0-999Hrs

Electricity measurement ranges: 0-99999Kwh

Temperature ranges: -20-150℃

Frequency measurement ranges: 50-60Hz

Power factor: 0.00-1.00PF

Power failure memory: KWS-302WF Yes, KWS-302L Yes, KWS-302 Yes

Under-voltage protecting: KWS-302WF Yes, KWS-302L Yes, KWS-302 None

Over-voltage protecting: KWS-302WF Yes, KWS-302L Yes, KWS-302 None

WIFI: KWS-302WF Yes,KWS-302L None, KWS-302 None

Item size: 66 66 82mm / 2.60 2.60 3.23in

Package size: 89 73 75mm / 3.50 2.87 2.95in
