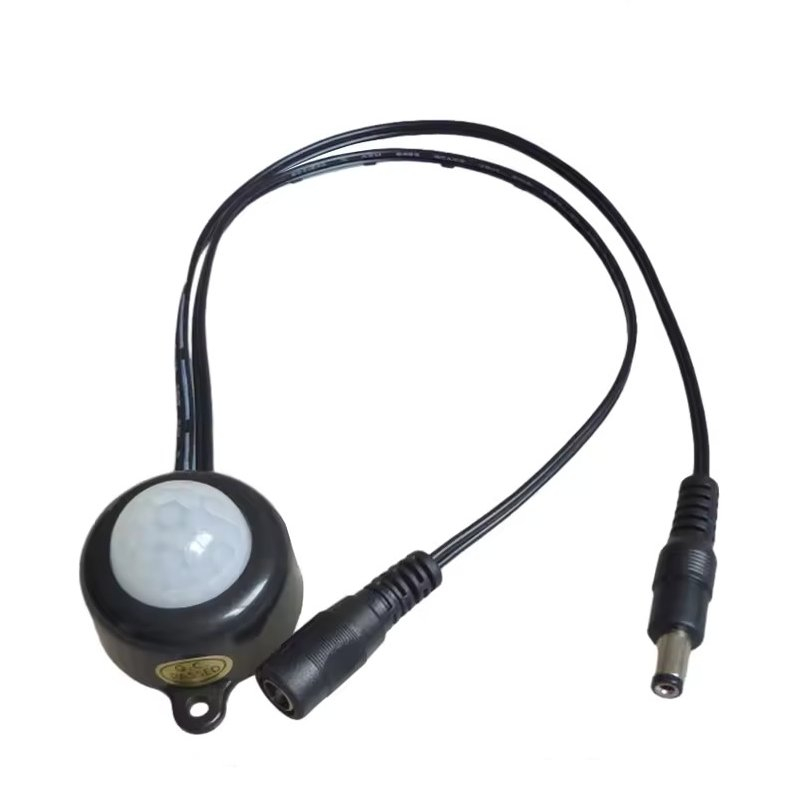

Infrared Motion Sensor Light Switch For Home DC 5V-24V DC 6V-24V

Product selling points

1.100% brand new and high-quality

2. Sensing range (3-5m)

3. Application field: Used in corridors, corridors, bathrooms, basements, warehouses, garages and other places, automatic ventilation and exhaust fans and other electrical appliances 4. Automatic control and other functions

5. Delayed automatic shutdown and other functions

6. The product is compact, low in consumption, and has good sensitivity

Product parameters

Product type: Infrared motion sensing switch

Product interface: DC head, 5.5 * 2 1 Specification

Function description: Human infrared sensing module, wide voltage, output voltage is the same as the input voltage,

Working voltage: 6V -24VDC (wide voltage)

Working temperature: -20 ° C~+50 ° C

Static current:<50uA

Output current: 5A

Trigger mode flow: continuous trigger

Output mode: inductive output

Delay range: Factory set to 18S (adjustable from 18 to 350 seconds)

Induction method: passive

Sensing angle: 120 degree cone angle

Sensing distance: 5-7 meters

Load power: 5V/25W 12V/60W 24V/120W

Light control induction: with light control (black lens without light control)

Induction time: 15 seconds (customizable from 2 to 360 seconds)

Product size: 43mmX21mm

Product line length: 300mm (including controller but not probe)

Mobile phone charger computer host (not available with power bank)

Product interface: USB head

Working voltage: 5V -24VDC (wide voltage)

Output current: 2A
