Features:

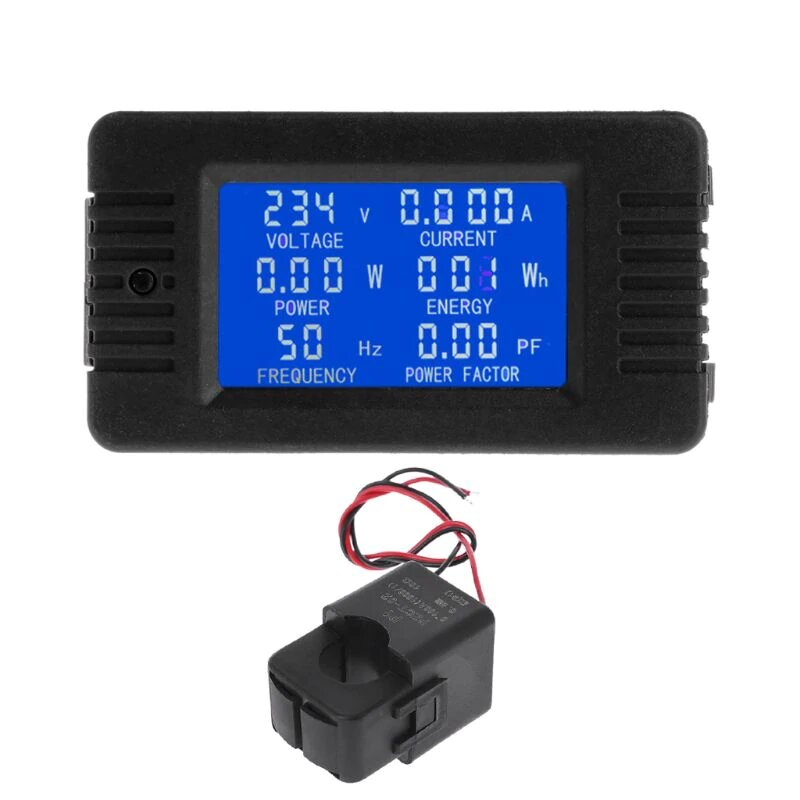

This combo meter is designed to monitor AC power, it combines many functions in one.
Backlight control, short press to turn on/off backlight, Automatically save data when power is turned off in backlight state.
Clear energy reading, press and hold down the key to clear the reading of kWh.
With Overload alarm, Power alarm threshold preset, Store data, Reset function
Measurement precision, large-screen LCD liquid crystal screen display clearly.

Function:
1. Electrical parameter measurement function (voltage, current, power factor, power, Hz, Energy).
2. Overload alarm function (over power alarm threshold, the backlight and power flicker tips).
3. The power alarm threshold preset function (can set up their own power alarm threshold).
4. The power button clear function.
5. Power-down data storage function.
6. Large-screen LCD screen full display function (display voltage, current, active power, power).
7. Backlight.

Parameters:
Voltage Measuring Range: 80-260V
Current Measuring Range: 0-100A
Frequency Measuring Range: 45-65Hz
Power Factor Measuring Range: 0.00-1.00PF
Power Measuring Range:0-22000W, Starting power: 0.5W
Energy Consumption Measuring Range: 0-999kWh

Specification:
Current types: 100A oR 10A
Power supply: 80~260V AC
Display type: LCD
Sensor type: Split Current Transformer
Shell material: Reinforced nylon
Dimensions: 89.6x49.6mm/3.53x1.95inch
Color: Black
Quantity: 1 Set

Package includes:
1 x Power Energy Monitor
1 x Split Current Transformer
1 x Instruction Manual
