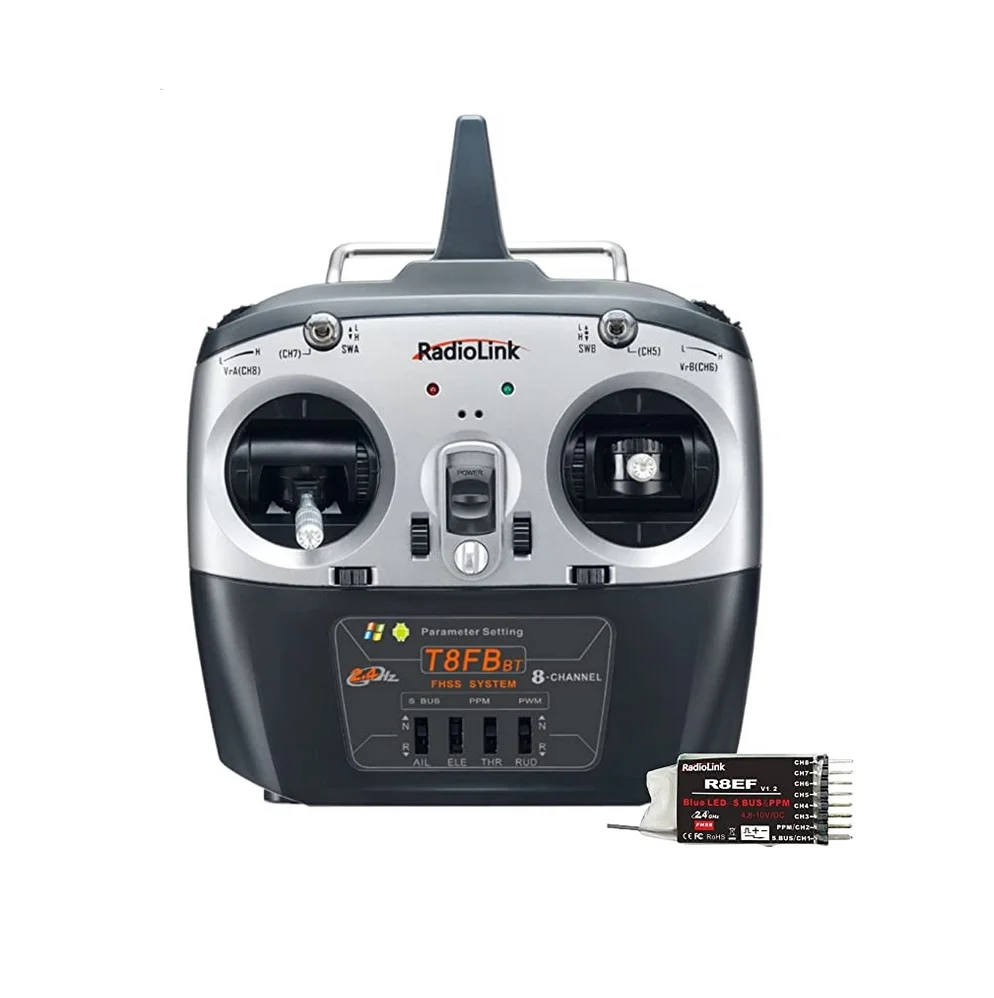

T8FB 8 Channels RC Transmitter and Receiver Support Bluetooth Connect to App for Setting, 2.4Ghz Remote Controller Works for Racing Drone Fixed Wing, Aircraft, Airplane, Multicopter, Quad, Car, Boat and More

T8FB BT version key features:

• Excellent Anti-interference: Real pseudo random algorithm FHSS communication technology makes T8FB with stable signal, control range up to 1.3 mile (2KM).

• Lower Latency: TI CC2500 chip, 4096 0.5us per section, fast response for all 8 channels.

• Wireless Connection: wireless connect controller with Android and iPhone app to parameter setting, like Fail-safe, End Point Adjustment, Dual Rate, Programmable Mix Control etc.

• Suit for Multiple Models: Press 1 second to bind with receiver R8EF, R8F, R8FM, R8SM, fit a wide range of RC aircraft models: FPV racing drone, fixed-wing, quadcopter, multirotors, RC boat and car

• Anti-polarity Protection: Not damage even if you insert wrong polarity. Universal JST connector supports multiple batteries: 4 pcs AA or 2s-4s LiPo battery. (Not included batteries)

• All the Radiolink transmitter(with Sbus signal output) support work with ardupilot, pix4, beta, arduino, Raspberry Pi hardware.


T8FB BT version Transmitter Specifications:

• Channels: 8CH

• Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）

• Channel Bands width: 1200KHz

• Spread Spectrum: FHSS

• Adjacent Channel rejection: >38dbm

• Transmitter Power: <100mW (20dBM

• Operating Voltage: 4.8V~18V

• Sensitivity: -104dB

• Speed Rate：38kbps

• PWM Output: 1.0ms~2.0m

• Size: 17.310.220.6cm

• Weight: 0.74kg


R8EF Receiver Specifications

• Signal output: S-BUS & PPM & PWM

• Channel: 8CH

• Control Distance: 2000m in air, actually control distance depends on the environment.

• Working Voltage: 3.0-15V

• Working Current: 30mA(input voltage 5V)

• Section precision: 4096

• Size: 4.82.11.1cm

• Weight: 7g


T8FB Standard Pack Included:

• T8FB  x 1

• R8EF receiver x 1

• Neck Strap x 1

• Spring Accessories x 1

• User Manual x 1

Mobile Phone App System Support: Android /IOS

Android app download: https://www.radiolink.com/t8s_apps

iPhone Apple IOS: Go to App Store search "Radiolink" to download app.
